The best electro-supply items, for both domestic and industrial use. Made in Italy, excellent materials, items always available and delivered within 48 hours of ordering. Lowest prices online!
Cube Infrared Wall Movement Detector White Ip54 Sensing Distance Max 10m Sensing Distance Min. 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10 m Perry 1spsp003b
DETECTION. MOVIM.PARETE IP54 CUBE WHITE
Price MPCshop
Eur. 36,48
Available
247 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1SPSP003B

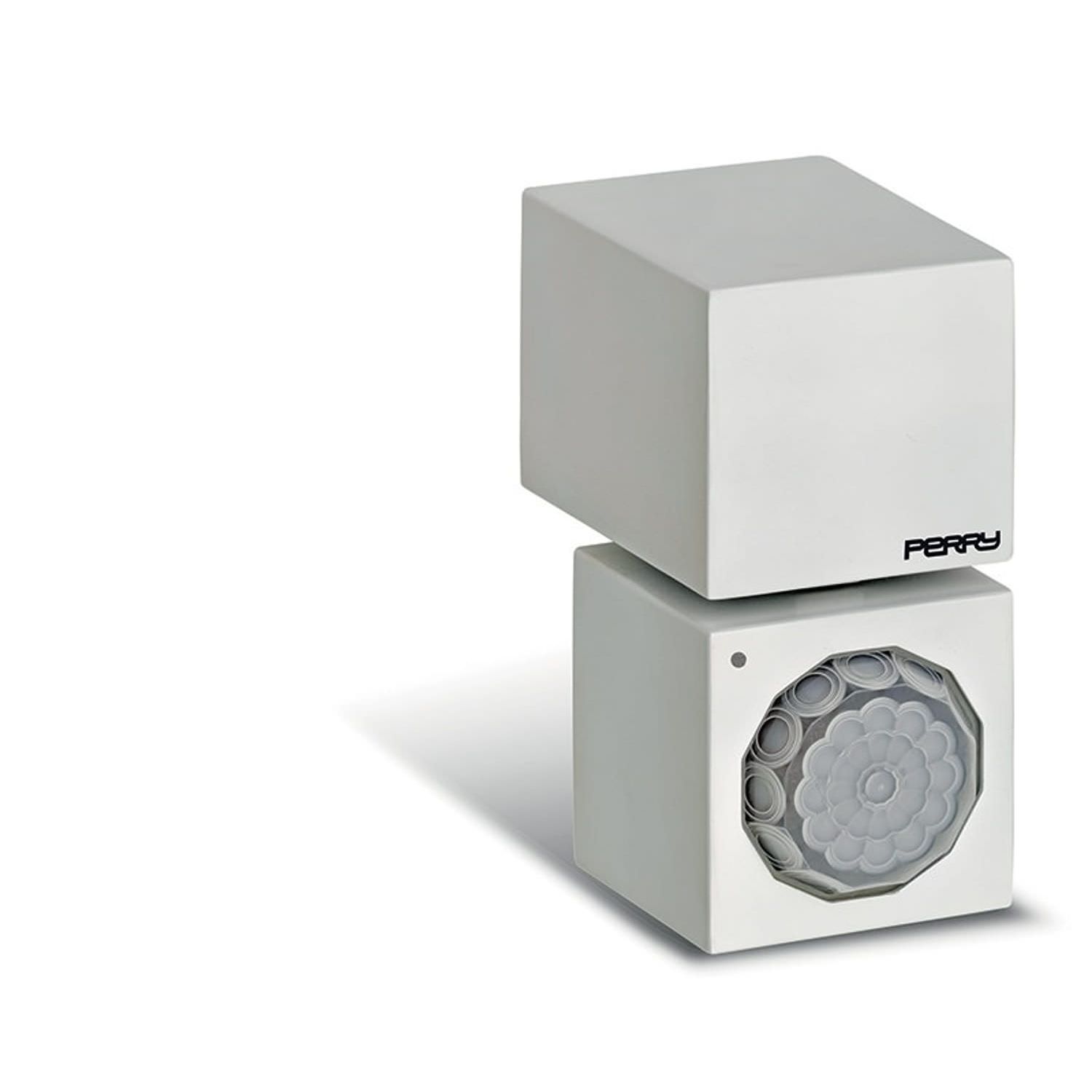

CUBE infrared wall movement detector in white colour model 1SPSP003B Perry Reduced dimensions and maximum performance for a product suitable for any type of environment Sensing angle: 140°. Sensitivity adjustable from 0.4 to 10 m Possibility of manual exclusion to keep the light on 4 hours by disabling the action of the sensor Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving persons. Light threshold adjustment 5 - 300 Lux Minimalist and sophisticated design, small size and top-level performance for a product suitable for any type of environment
Cube Infrared Wall Movement Detector White Colour 1spsp003b Perry
Customers Reviews Perry Perry-1SPSP003B
Infrared wall movement detector CUBE white colour IP54 Sensing distance max 10m Sensing distance min. 40 cm Power supply 230V 50Hz Sensing angle 140 degrees Sensitivity adjustable from 0,4 to 10 m Perry 1SPSP003B
Infrared wall movement detector CUBE white - IP54 Minimalist and sophisticated design, small size and maximum performance for a product suitable for any type of environment, indoor and outdoor, wall or ceiling installation
Strength points - Sensing angle: 140°. Sensitivity adjustable from 0.4 to 10 m. - Possibility of manual exclusion to keep the light on for 4 hours by disabling the action of the sensor.
The passive infrared motion detector (PIR) for indoor and outdoor wall/ceiling installation (IP54) is a fully automatic light control device capable of controlling a lighting system (see power ratings that can be controlled in the technical data table). During the night or in dark environments, the motion detector turns on the connected lighting system when it detects movement in its field of coverage. During the day or in areas with sufficient natural light, the built-in twilight sensor saves electricity by switching off the lights, in fact, by acting on the twilight controller, you determine the level of brightness at which the lighting system should come into operation . An adjustable timer allows you to choose how long the light should stay on after activation. An important feature of the PIR detector is the intelligent control of the "zero crossing" relay that optimizes load insertion by increasing the life of the relay.
Motion detectors and presence sensors are tools that increase the energy efficiency of the electrical systems in which they are installed. These devices, in fact, adapt the consumption of electricity to the real needs of lighting. The adjustable twilight threshold allows you to select when natural light is no longer sufficient for the user and therefore artificial light must be switched on. The switch-off delay time adjustment allows you to minimize waste, giving you the ability to set how long the light should stay on in the absence of people in the detection angle. This means switching on the light only when the sunlight is not enough and only for as long as you are present in the room.
Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving people. The motion detector activates the connected loads (lamp ignition, fans) when it detects movement in its coverage area. Deactivation takes place with a user-adjustable time delay. An adjustable twilight sensor prevents the lighting from switching on depending on the ambient brightness. The detectors are used to turn on the lights of: private and public corridors, garages, driveways and entrances of homes, porches, stairways, corridors, bathrooms, etc..

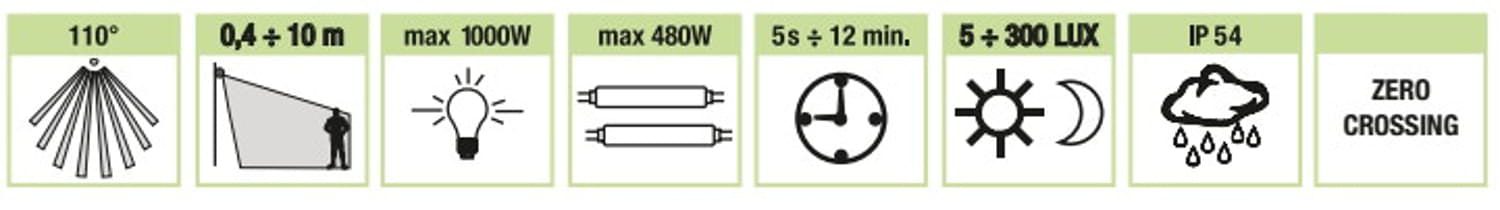

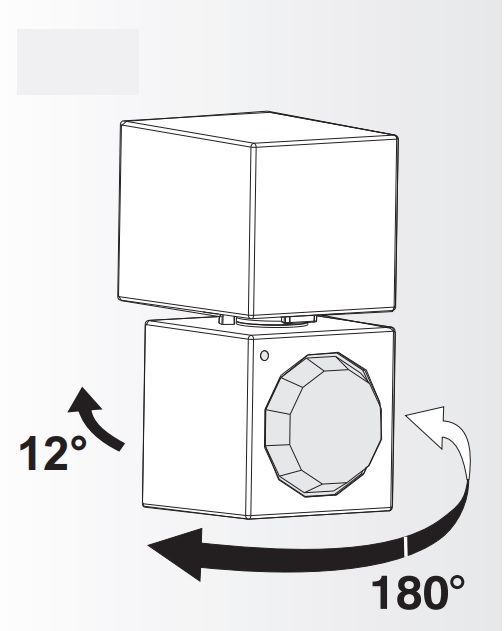

TECHNICAL FEATURES Wall or ceiling installation Power supply 230V 50Hz Relay capacity: 5A Maximum lighting load: Incandescent lamps 1000W Fluorescent lamps 480W - CFL/LED (230V) 8 Sensing angle 140° Sensing head rotation angle: horizontal 180°, vertical 12° Sensing distance max 10 m Minimum sensing distance 40 cm Control of twilight threshold 5 - 300 Lux Control of switch-off delay time 10 sec - 12 min Isolation class II Intelligent control of relay "ZERO CROSSING" Dimensions (WxDxH) 50 x 64 x 102 mm
.
White infrared motion detector for wall Perry 1SPSP003B
Cube Infrared Wall Movement Detector White Ip54 Sensing Distance Max 10m Sensing Distance Min. 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10 m Perry 1spsp003b
DETECTION. MOVIM.PARETE IP54 CUBE WHITE
Price MPCshop
Eur. 36,48
Available
247 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1SPSP003B
CUBE infrared wall movement detector in white colour model 1SPSP003B Perry Reduced dimensions and maximum performance for a product suitable for any type of environment Sensing angle: 140°. Sensitivity adjustable from 0.4 to 10 m Possibility of manual exclusion to keep the light on 4 hours by disabling the action of the sensor Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving persons. Light threshold adjustment 5 - 300 Lux Minimalist and sophisticated design, small size and top-level performance for a product suitable for any type of environment
Rilevatore di movimento da parete a raggi infrarossi CUBE colore bianco IP54 Distanza di rilevamento max 10m Distanza rilevamento minima 40 cm Alimentazione 230V 50Hz Angolo di rilevamento 140 gradi Sensibilità regolabile dai 0,4 ai 10 m Perry 1SPSP003B
Rilevatore di movimento da parete a raggi infrarossi CUBE colore bianco - IP54 Design minimalista e ricercato, dimensioni ridotte e prestazioni ai massimi livelli per un prodotto adatto ad ogni tipo di ambiente, da interno ed esterno, installazione a parete o a soffitto
PUNTI DI FORZA • Angolo di rilevamento: 140°. Sensibilità regolabile dai 0,4 ai 10 m . • Possibilità di esclusione manuale per mantenere la luce accesa 4 ore disabilitando l’azione del sensore.
Il rilevatore di movimento a raggi infrarossi passivi (PIR) da installazione a parete/soffitto in ambienti interni ed esterni (IP54), è un dispositivo di controllo luci completamente automatico in grado di controllare un impianto di illuminazione (vedere potenze pilotabili in tabella dati tecnici). Durante la notte o in ambienti bui, il rilevatore di movimento accende l'impianto di illuminazione collegato quando rileva un movimento nel suo campo di copertura. Durante il giorno o in ambienti sufficientemente illuminati dalla luce naturale, il sensore crepuscolare incorporato consente di risparmiare energia elettrica disattivando le luci, infatti, agendo sul regolatore del crepuscolare, si determina il livello di luminosità al quale l'impianto di illuminazione deve entrare in funzione. Un timer regolabile consente di scegliere per quanto tempo la luce deve rimanere accesa dopo l'attivazione. Una caratteristica importante del rilevatore PIR è il pilotaggio intelligente del relè “zero crossing” che ottimizza l’inserzione del carico aumentando la durata del relè.
I rilevatori di movimento e i sensori di presenza sono strumenti che aumentano l’efficienza energetica degli impianti elettrici in cui vengono installati. Questi dispositivi, infatti, adattano il consumo di energia elettrica alle reali necessità d’illuminazione. La soglia crepuscolare impostabile permette di selezionare quando la luce naturale non è più sufficiente per l’utente e quindi deve essere accesa la luce artificiale. La regolazione del ritardo allo spegnimento consente di limitare al massimo gli sprechi, dando la possibilità di impostare per quanto tempo la luce deve rimanere accesa in assenza di persone nell’angolo di rilevamento. Ciò significa accendere la luce solo quando la luce del sole non è sufficiente e solo per il tempo in cui si è presenti nell’ambiente.
I rilevatori di movimento sono interruttori elettronici comandati da un sensore a raggi infrarossi passivi sensibile alle radiazioni di calore emesse dalle persone in movimento. Il rilevatore di movimento attiva le utenze collegate (accensione lampada, ventilatori) quando rileva un movimento nella sua area di copertura. La disattivazione avviene con un ritardo di tempo regolabile dall’utente. Un sensore crepuscolare regolabile inibisce l’accensione dell’illuminazione in funzione della luminosità ambientale. I rilevatori trovano applicazione per l’accensione delle luci di: corridoi privati e pubblici, autorimesse, viali di accesso e in ingressi delle abitazioni, porticati, scalinate, corridoi, bagni ecc.
CARATTERISTICHE TECNICHE Installazione a parete o soffitto Alimentazione 230V 50Hz Portata relè: 5A Carico massimo di illuminazione: Lampade incandescenza 1000W Lampade fluorescenti 480W - CFL/LED (230V) 8 Angolo di rilevamento 140° Angolo di rotazione della testa di rilevazione: orizzontale 180°, verticale 12° Distanza di rilevamento max 10 m Distanza rilevamento minima 40 cm Regolazione della soglia crepuscolare 5 – 300 Lux Regolazione del ritardo alla spegnimento 10 sec – 12 min Classe di isolamento II Pilotaggio intelligente del relè "ZERO CROSSING" Dimensioni (LxPxH) 50 x 64 x 102 mm
White infrared motion detector for wall Perry 1SPSP003B
Wall Movement Detector Zero Series Model 1spsp044b Perry Protection Class Ip44 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Warm-up Time At First Power On Or After Blackout Approx. 40\"
Wall Mounted Motion Detector Zero Series Model 1spsp054b Perry Protection Class Ip54 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Operating Temperature From -20c To _40c Motion Detector With Broken Beams
Cube Infrared Wall Movement Detector Anthracite Colour Ip54 Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10m Perry 1spsp003a
Infrared Wall Movement Detector Ip44 Wall Installation Power Supply 230v 50hz Sensing Distance Max 12m Twilight Threshold Adjustment 0-1000 Lux Sensing Angle 180° Insulation Class Ii Perry 1spsp010
Wall Movement Detector Zero Series Model 1spsp044b Perry Protection Class Ip44 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Warm-up Time At First Power On Or After Blackout Approx. 40\"
Wall Mounted Motion Detector Zero Series Model 1spsp054b Perry Protection Class Ip54 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Operating Temperature From -20c To _40c Motion Detector With Broken Beams
Cube Infrared Wall Movement Detector Anthracite Colour Ip54 Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10m Perry 1spsp003a
Infrared Wall Movement Detector Ip44 Wall Installation Power Supply 230v 50hz Sensing Distance Max 12m Twilight Threshold Adjustment 0-1000 Lux Sensing Angle 180° Insulation Class Ii Perry 1spsp010
Perry-1SPSP003BPerry Infrared Motion Detector Cube Infrared Wall Movement Detector White Ip54 Sensing Distance Max 10m Sensing Distance Min. 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10 m Perry 1spsp003b white
