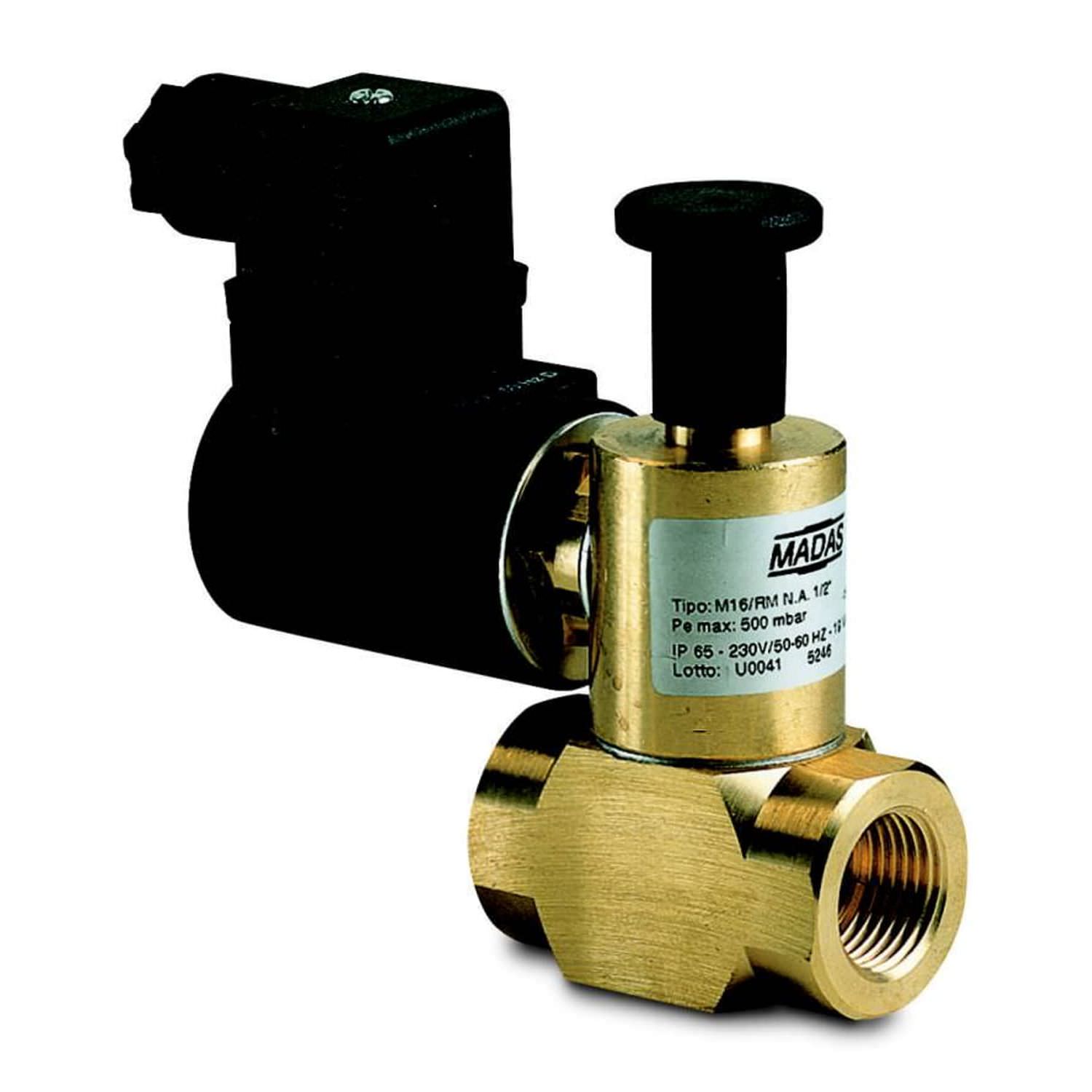

Perry Elettrovalvola Per Gas Na 12 Filettata Perry-1EVEV020

Elettrovalvola Per Gas Na 1/2” Filettata Omologata In Classe “a” Alimentazione 230v C.a. +/-10% Normalmente Aperta Riarmo Manuale Max 5000 Mbar. Dotata Di Connettore Elettrico Perry 1evev020

SOLENOID VALVE NA 1/2\" DN15 230V

Price MPCshop

Eur. 62,89

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1EVEV020

First bullet point Elettrovalvola Per Gas Na 12 Filettata

The solenoid coil, if subjected to voltage, releases the closing device of the valve that is normally open.
Second bullet point Elettrovalvola Per Gas Na 12 Filettata

Second bullet point Elettrovalvola Per Gas Na 12 Filettata

Resetting is manual to verify the causes of the gas interception.
Third bullet point Elettrovalvola Per Gas Na 12 Filettata

During normal operation there is no power consumption and therefore, in addition to saving energy, no organ is subject to wear.
Fourth bullet point Elettrovalvola Per Gas Na 12 Filettata

Fourth bullet point Elettrovalvola Per Gas Na 12 Filettata

Normally open solenoid valve for gas Brass body
Fifth bullet point Elettrovalvola Per Gas Na 12 Filettata

Encapsulated coils made of glass-fibre reinforced polyamide resin with DIN 43650 connection insulation class F (155°) and enameled wire class H (180°)

Solenoid Valve For Gas No 12 Threaded Approved In Class a Normally Open Manual Reset Max 5000 Mbar

Customers Reviews Perry Perry-1EVEV020

Solenoid valve for gas NO 1/2" threaded approved in class "A" Power supply 230V AC /-10ormally open Manual reset max 5000 mbar. Equipped with electrical connector Perry 1EVEV020

The operating principle of the solenoid valve gas interception series N.O. (normally open) is very simple and therefore extremely safe. The solenoid coil, if subjected to voltage, releases the closing device of the valve that is normally open. Resetting is manual to verify the causes of the gas interception. During normal operation there is no power consumption and therefore, in addition to saving energy, no organ is subject to wear.

CARATTERISTICS
- Threaded connections Rp (brass bodies): DN15÷25 according to EN 10226
- Threaded connections Rp: DN20÷50 according to EN 10266
- Flanged connections PN16: DN32÷300 according to ISO 7005
- Degree of protection: IP65
- Closing time: < 1 s
- Maximum operating pressure: 500 mbar or 6 bar (see product label)
- Ambient temperature: 15 ÷ 60 °C
- Max. surface temperature 70 °C
- Encapsulated coils in glass-filled polyamide resin with DIN 43650 connection - insulation class is F (155°) and the enamelled wire is H (180°)

MATERIALS
- Brass OT-58 (UNI EN 12164)
- Aluminium 11S (UNI 9002-5)
- Aluminium die-cast (UNI EN 1706)

Perry normally-open half-inch gas solenoid valve Perry 1EVEV020
Elettrovalvola Per Gas Na 12 Filettata

Elettrovalvola Per Gas Na 12 Filettata Perry-1EVEV020

Elettrovalvola Per Gas Na 1/2” Filettata Omologata In Classe “a” Alimentazione 230v C.a. +/-10% Normalmente Aperta Riarmo Manuale Max 5000 Mbar. Dotata Di Connettore Elettrico Perry 1evev020

SOLENOID VALVE NA 1/2\" DN15 230V

Price MPCshop

Eur. 62,89

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1EVEV020

The solenoid coil, if subjected to voltage, releases the closing device of the valve that is normally open.
Second bullet point Elettrovalvola Per Gas Na 12 Filettata

Resetting is manual to verify the causes of the gas interception.
Third bullet point Elettrovalvola Per Gas Na 12 Filettata

During normal operation there is no power consumption and therefore, in addition to saving energy, no organ is subject to wear.
Fourth bullet point Elettrovalvola Per Gas Na 12 Filettata

Normally open solenoid valve for gas Brass body
Fifth bullet point Elettrovalvola Per Gas Na 12 Filettata

Encapsulated coils made of glass-fibre reinforced polyamide resin with DIN 43650 connection insulation class F (155°) and enameled wire class H (180°)

Elettrovalvola per gas NA 1/2” filettata omologata in classe “A” Alimentazione 230V c.a. +/-10% Normalmente aperta Riarmo manuale max 5000 mbar. Dotata di connettore elettrico Perry 1EVEV020

Il principio di funzionamento della elettrovalvola intercettazione gas serie N.A. (normalmente aperta) è molto semplice e per questo estremamente sicuro. La bobina elettromagnetica, se sottoposta tensione, sgancia il dispositivo di chiusura della valvola che è normalmente aperta. Il riarmo è manuale per verificare le cause dell’avvenuta intercettazione del gas. Durante il normale esercizio non c’è assorbimento elettrico e quindi, oltre al risparmio energetico, nessun organo è sottoposto a usura.

CARATTERISTICHE
• Attacchi filettati Rp (corpi ottone): DN15÷25 secondo EN 10226
• Attacchi filettati Rp: DN20÷50 secondo EN 10266
• Attacchi flangiati PN16: DN32÷300 secondo ISO 7005
• Grado di protezione: IP65
• Tempo di chiusura: < 1 s
• Pressione massima di esercizio: 500 mbar o 6 bar (vedere etichetta prodotto)
• Temperatura ambiente: -15 ÷ +60 °C
• Temperatura superficie max: 70 °C
• Bobine incapsulate in resina poliammidica caricata con fibre di vetro con attacco tipo DIN 43650 - la classe di isolamento è la F (155°) ed il filo smaltato è in classe H (180°)

MATERIALI
• Ottone OT-58 (UNI EN 12164)
• Allumino 11S (UNI 9002-5)
• Alluminio pressofuso (UNI EN 1706)

Perry normally-open half-inch gas solenoid valve Perry 1EVEV020
Elettrovalvola Per Gas Na 12 Filettata

Details Perry Perry-1EVEV020
Power supply	230 VAC - 50-60 Hz
Color	Black
Measures
Weight
Barcode	8019108190089
Country of production	ITALY
Vendor code	1EVEV020
Comment	SOLENOID VALVE NA 1/2\" DN15 230V
Brand	Perry

Manual
