Electronic Valve For Radiators With Radio Transceiver 868.35mhz Power Supply 3v 2x1.5v Alkaline Autonomy About 36 Months Threaded Connection For Radiators With Adapter Ring For The Main Thermostatic Valves Perry 1txvtrx02

3 V ELECTRONIC VALVE

Price List

Eur. 113,73

Price MPCshop

Eur. 110,73

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1TXVTRX02

First bullet point Electronic Valve For Radiators

Electronic valve for radiators
Second bullet point Electronic Valve For Radiators

Thermosiphon valve with RF signal level indication
Third bullet point Electronic Valve For Radiators

Valve for radiators Autonomy about 36 months
Fourth bullet point Electronic Valve For Radiators

Valve for radiators with indication of the opening/closing status of the valve
Fifth bullet point Electronic Valve For Radiators

Perry electtric radiator valve

Perry Perry 1txvtrx02 White Electronic Radiator Valve

Customers Reviews Perry Perry-1TXVTRX02

Franco

Data: 22-May-2017
Precise delivery, the valve behaves correctly. For an outdated system it is a perfect solution that allows significant savings without the need for masonry work.

Lucio L.

Data: 7-December-2016
The perry valve was delivered to me in a good package before the indicated date Excellent Product

Electronic valve for radiators with radio transceiver 868.35MHz Power supply 3V 2x1.5V alkaline Autonomy about 36 months Threaded connection for radiators with adapter ring nut for the main Perry 1TXVTRX02 thermostatic valves

FORCE POINTS
- Electronic valve for radiators
- RF signal level indication
- Autonomy about 36 months
- Valve opening/closing status indication

FUNCTIONING modulating in time
with ON/OFF intervention
IP30
Information of RF signal level
Autonomy about 36 months
Indication of battery charger and/or anomalies
Indication of valve opening/closing status
Threaded connection for radiators with adapter ring nut for the main thermostatic valves
Alimentation: via 2 x 1.5 V alkaline batteries type NM1400, Size C (LR14)(recommended Duracell or Energizer)
Maximum power supply voltage: 3.2 V =
Output type: motorized control for tap pin
Emission radio: the device intentionally emits radio waves on the
frequency band of 868-868.6 MHz,
with a maximum power of less than 25mW e.r.p.
Maximum signal flow rate in free air: 120 meters
Maximum signal flow rate in wall: 30 meters
Signal reception mode: lamda/4 antenna integrated in the device
Isolation type: Class III
Protection degree: IP 40
Pollution degree: normal
Operating temperature limits: -5 °C ÷ 65 °C
Storage temperature limits: -10 °C ÷ 70 °C

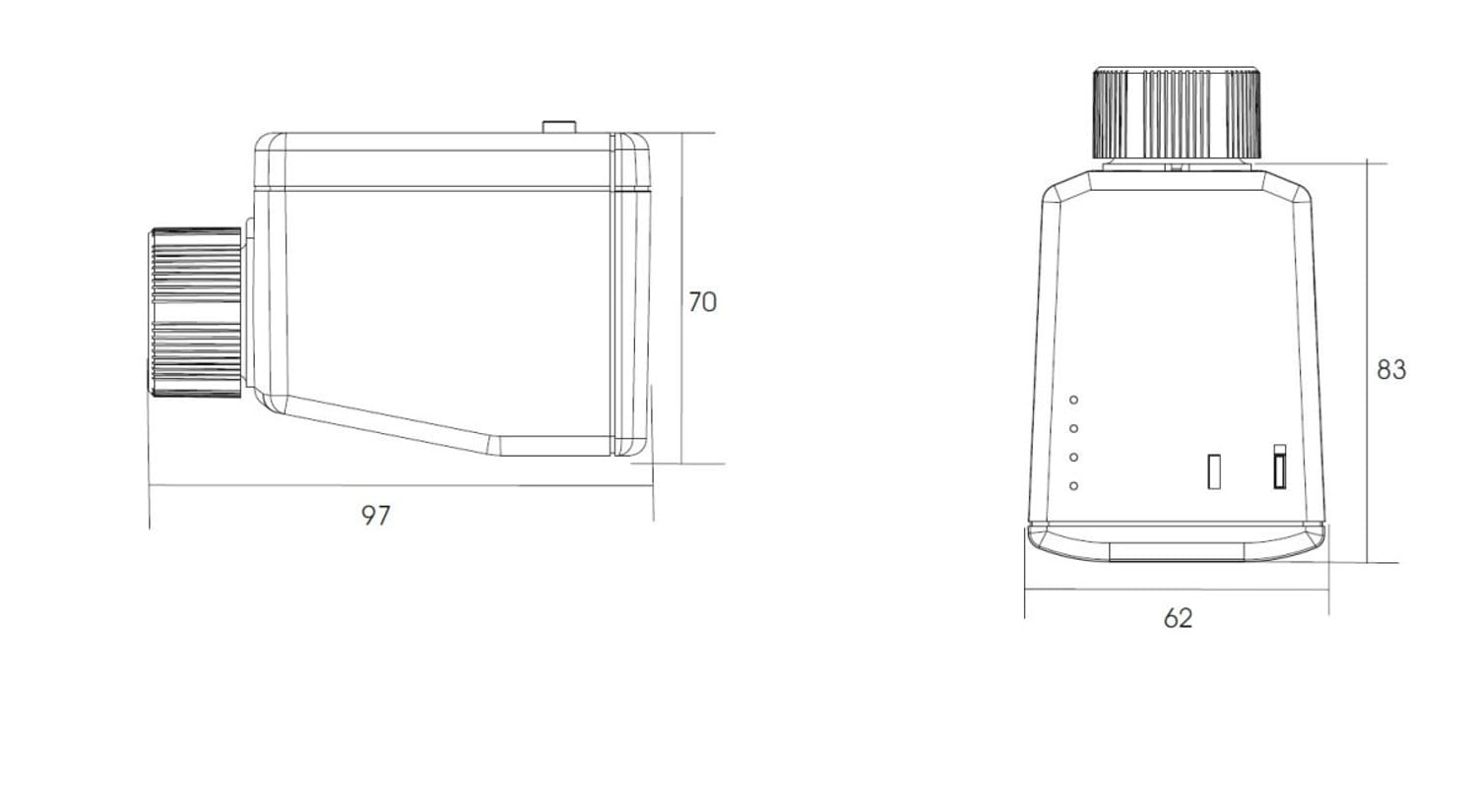

Size (WxDxH) 62 x 70 x 97 mm

PERFORMANCE DATA
Automatic keyboard lock (tamper-proof).
- Adaptation to the needle tap installed on the radiator.
- Automatic locking of the adaptation forcing operation (tamper-proof).
- Matching of the transmitter in self-learning, facilitated by luminous and acoustic indications.
- Possibility of cancelling the matching of the transmitter to the area even in case of transmission failure.
- Possibility to set the delay time of the valve closing manoeuvre, from the transmitter control: 10 seconds (factory setting) or 5 minutes.
- Permanent memory, modifiable, for transmitter pairing.
- Luminous indication of the failure status for absence of transmission and for valve batteries and/or transmitter batteries associated almost
discharges.
- Automatic positioning in valve closing before the batteries are completely discharged.
- Luminous signaling of the valve mismatch status at the tap.
- Automatic weekly antiscale operation.
- Possibility to insert or exclude the luminous signals of the valve status in normal operation.
- Luminous and/or acoustic indication, on 3 levels, of the TEST signal to verify the presence and flow rate of the signal (VMETER).

- High communication reliability thanks to double data transmission.

ABBINABLE A:
- Perry 1TX CRTX05 Wireless Chronothermostat
- Perry 1TX TETX04 electronic wireless thermostat

ACCESSORIES
1PA ASVT01 Angled adapter for electronic valves on radiators.
Allowing vertical mounting of electronic valves on radiators.

Electronic valve for radio transceiver for radiators Perry 1TXVTRX02
Electronic Valve For Radiators

Perry Electronic Valve For Radiators is a product on offer at the best price

Electronic Valve For Radiators Perry-1TXVTRX02

Electronic Valve For Radiators With Radio Transceiver 868.35mhz Power Supply 3v 2x1.5v Alkaline Autonomy About 36 Months Threaded Connection For Radiators With Adapter Ring For The Main Thermostatic Valves Perry 1txvtrx02

3 V ELECTRONIC VALVE

Price List

Eur. 113,73

Price MPCshop

Eur. 110,73

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1TXVTRX02

Electronic valve for radiators
Second bullet point Electronic Valve For Radiators

Thermosiphon valve with RF signal level indication
Third bullet point Electronic Valve For Radiators

Valve for radiators Autonomy about 36 months
Fourth bullet point Electronic Valve For Radiators

Valve for radiators with indication of the opening/closing status of the valve
Fifth bullet point Electronic Valve For Radiators

Perry electtric radiator valve

Data: 22 maggio 2017
Consegna precisa, la valvola si comporta correttamente. Per un impianto datato è una soluzione perfetta che permette sensibili risparmi senza dover effettuare opere murarie.

Data: 7-dicembre-2016
La valvola perry mi è stata recapitata in una buona confezione prima della data indicata Ottimo Prodotto

Valvola elettronica per termosifoni con ricetrasmettitore radio 868.35MHz Alimentazione 3V 2x1.5V alcaline Autonomia 36 mesi circa Attacco filettato per termosifoni con ghiera di adattamento per le principali valvole termostatizzabili Perry 1TXVTRX02

PUNTI DI FORZA
• Valvola elettronica per termosifoni
• Indicazione livello segnale RF
• Autonomia 36 mesi circa
• Indicazione stato di apertura/chiusura della valvola

CARATTERISTICHE
Funzionamento modulante nel tempo
con intervento ON/OFF
IP30
Indicazione livello segnale RF
Autonomia 36 mesi circa
Indicazione livello segnale RF
Indicazione carica batterie e/o anomalie
Indicazione stato di apertura/chiusura della valvola
Attacco filettato per termosifoni con ghiera di adattamento per le principali valvole termostatizzabili
Alimentazione: tramite 2 pile alcaline da 1,5 V tipo NM1400, Size C (LR14)(consigliate Duracell o Energizer)
Tensione massima di alimentazione: 3,2 V =
Tipo di uscita: comando motorizzato per spillo rubinetto
Radio emissione: l'apparecchio emette intenzionalmente onde radio sulla
banda di frequenza di “868-868.6” MHz,
con una potenza massima inferiore a 25mW e.r.p.
Portata massima del segnale in aria libera: 120 metri
Portata massima del segnale in presenza di pareti: 30 metri
Modo di ricezione del segnale: antenna in lamda/4 integrata nel dispositivo
Tipo di isolamento: Classe III
Grado di protezione: IP 40
Grado di inquinamento: normale
Limiti della temperatura di funzionamento: -5 °C ÷ + 65 °C
Limiti della temperatura di stoccaggio: -10 °C ÷ + 70 °C

Dimensione (LxPxH) 62 x 70 x 97 mm

DATI PRESTAZIONALI
Blocco automatico della tastiera (antimanomissione).
- Adattamento al rubinetto a spillo installato sul termosifone.
- Blocco automatico dell’operazione di forzatura di adattamento (antimanomissione).
- Abbinamento del trasmettitore in autoapprendimento, facilitato da indicazioni luminose e acustiche.
- Possibilità di cancellazione dell’abbinamento del trasmettitore alla zona anche in caso di avaria della trasmissione.
- Possibilità di impostare il tempo di ritardo della manovra di chiusura della valvola, dal comando del trasmettitore: 10 secondi (impostazione di fabbrica) oppure 5 minuti.
- Memoria permanente, modificabile, per l’abbinamento del trasmettitore.
- Segnalazione luminosa dello stato di avaria per assenza di trasmissioni e per pile valvola e/o pile trasmettitore associato quasi
scariche.
- Posizionamento automatico in chiusura della valvola prima della completa scarica delle pile.
- Segnalazione luminosa dello stato di disadattamento della valvola al rubinetto.
- Operazione anticalcare automatica settimanale.
- Possibilità di inserire o escludere le segnalazioni luminose di stato della valvola in normale funzionamento.
- Indicazione luminosa e/o acustica, su 3 livelli, del segnale di TEST per verifica della presenza e portata del segnale (VMETER).

- Elevata affidabilità della comunicazione grazie alla doppia trasmissione dei dati.

ABBINABILE A:
• Cronotermostato Wireless Perry 1TX CRTX05
• Termostato wireless elettronico Perry 1TX TETX04

ACCESSORI
1PA ASVT01 Adattatore a squadra per valvole elettroniche sui termosifoni.
Permette il montaggio verticale delle valvole elettroniche sui termosifoni.

Electronic valve for radio transceiver for radiators Perry 1TXVTRX02
Electronic Valve For Radiators

Details Perry Perry-1TXVTRX02
Power supply	AA batteries 2 x 1.5V
Type Installation	Threaded connection
Battery autonomy	36 months approx
Degree of protection	IP30
Color	White
Measures	0
Weight	0
Barcode	8019108162154
Country of production	Italy
Vendor code	1TXVTRX02
Comment	3 V ELECTRONIC VALVE
Brand	Perry
