Perry Electromechanical Level Regulator Perry-1CLRLG06-25PVC
Float Level Regulator For Fresh Water Electromechanical Neoprene Cable 3x1 25m Smart 25mt Perry 1clrlg06-25pvc Is a Float Switch For Managing The Level Of Liquids In Electrical Equipment, Pumps, Solenoid Valves
FLOATING REGULATOR PVC 25MT
Price List
Eur. 75,33
Price MPCshop
Eur. 73,35
Available
40 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1CLRLG06-25PVC
The level regulator is a PVC float switch for managing the level of liquids that allows the insertion of electrical equipment (normally pumps, but also solenoid valves, alarms, motorized shutters, etc.. ) Made of non-toxic polypropylene can also be used in contact with liquid food cable PVC 3x1 25 m The device, coupled to a pump through a flexible cable, allows to adjust the level of the liquid in which it is immersed. Electric flow rate 10(8) A 250V MAX temperature of use 50° C Resistance to pressure 1.5 BAR Degree of protection IP68 tested at a depth of 1 m for a period of 7 days, water temperature 50° C The position taken by the float, depends on the level of the liquid, determines the switching of the microswitch by controlling the operation of the pump
Perry1clrlg0625pvc Electromechanical Level Regulator With Float For Clear Water Level Management Of Liquids In Electrical Equipment
Customers Reviews Perry Perry-1CLRLG06-25PVC

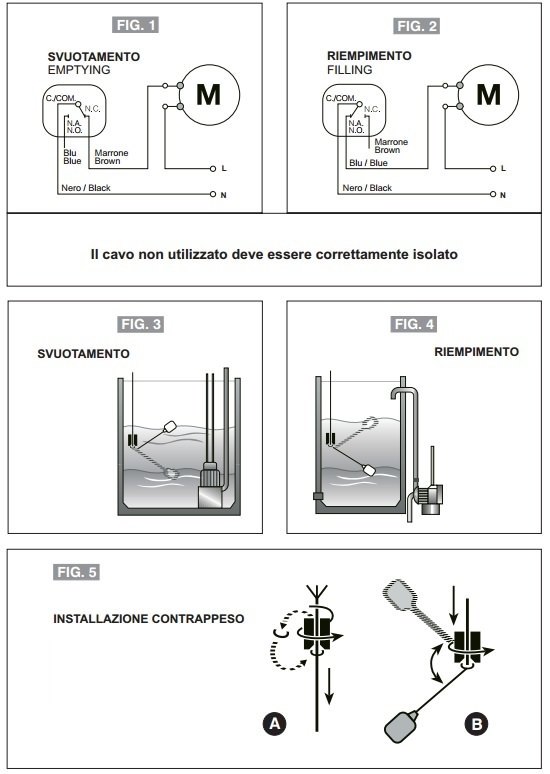

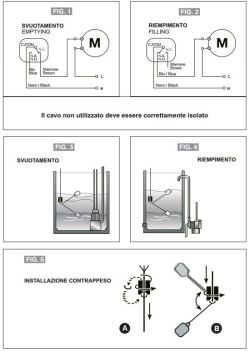

Float level regulator for fresh water Electromechanical neoprene cable 3x1 25m SMART 25MT Perry 1CLRLG06-25PVC is a float switch for managing the level of liquids of electrical equipment (normally pumps, but also solenoid valves, alarms, motorized shutters, etc..) to reach a set level. Made of non-toxic polypropylene, it can also be used in contact with food liquids. The regulator is approved according to EN 60730 and is therefore in accordance with the main requirements of Directive 93/68/EEC. The device, coupled to a pump through a flexible cable, allows you to adjust the level of the liquid in which it is immersed. The regulator is in fact made up of a float casing made entirely watertight, which houses a microswitch connected to the flexible cable. The position assumed by the float, depends on the level of the liquid, determines the switching of the microswitch by controlling the operation of the pump. Technical features Electric flow rate 10(8) A 250V Max temperature of use 50° C Pressure resistance 1.5 BAR Protection class IP68 tested at a depth of 1 m for a period of 7 days, water temperature 50° C
Electromechanical level regulator neoprene cable 25 m Perry 1CLRLG06/25PVC
Float Level Regulator For Fresh Water Electromechanical Neoprene Cable 3x1 25m Smart 25mt Perry 1clrlg06-25pvc Is a Float Switch For Managing The Level Of Liquids In Electrical Equipment, Pumps, Solenoid Valves
FLOATING REGULATOR PVC 25MT
Price List
Eur. 75,33
Price MPCshop
Eur. 73,35
Available
40 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1CLRLG06-25PVC
The level regulator is a PVC float switch for managing the level of liquids that allows the insertion of electrical equipment (normally pumps, but also solenoid valves, alarms, motorized shutters, etc.. ) Made of non-toxic polypropylene can also be used in contact with liquid food cable PVC 3x1 25 m The device, coupled to a pump through a flexible cable, allows to adjust the level of the liquid in which it is immersed. Electric flow rate 10(8) A 250V MAX temperature of use 50° C Resistance to pressure 1.5 BAR Degree of protection IP68 tested at a depth of 1 m for a period of 7 days, water temperature 50° C The position taken by the float, depends on the level of the liquid, determines the switching of the microswitch by controlling the operation of the pump
Regolatore di livello a galleggiante per acque chiare elettromeccanico cavo in neoprene 3x1 da 25m SMART 25MT Perry 1CLRLG06-25PVC è un interruttore galleggiante per la gestione del livello dei liquidi di apparecchiature elettriche (normalmente pompe, ma anche elettrovalvole, allarmi, saracinesche motorizzate ecc.) al raggiungimento di un livello prefissato. Realizzato in polipropilene atossico può essere usato anche a contatto con liquidi alimentari. Il regolatore è omologato secondo le norme EN 60730 ed è quindi in accordo con i principali requisiti della direttiva 93/68/CEE. Il dispositivo, accoppiato ad una pompa attraverso un cavo flessibile, consente di regolare il livello del liquido in cui viene immerso. Il regolatore è infatti costituito da un involucro galleggiante interamente realizzato a tenuta stagna, al cui interno è alloggiato un microinterruttore collegato al cavo flessibile. La posizione assunta dal galleggiante, dipende dal livello del liquido, determina la commutazione del microinterruttore comandando l`azionamento della pompa. Caratteristiche tecniche Portata elettrica 10(8) A 250V Temperatura MAX di utilizzo 50° C Resistenza a pressione 1.5 BAR Grado di protezione IP68 testato alla profondità di 1 m per un periodo di 7 giorni, temp dell`acqua 50° C
