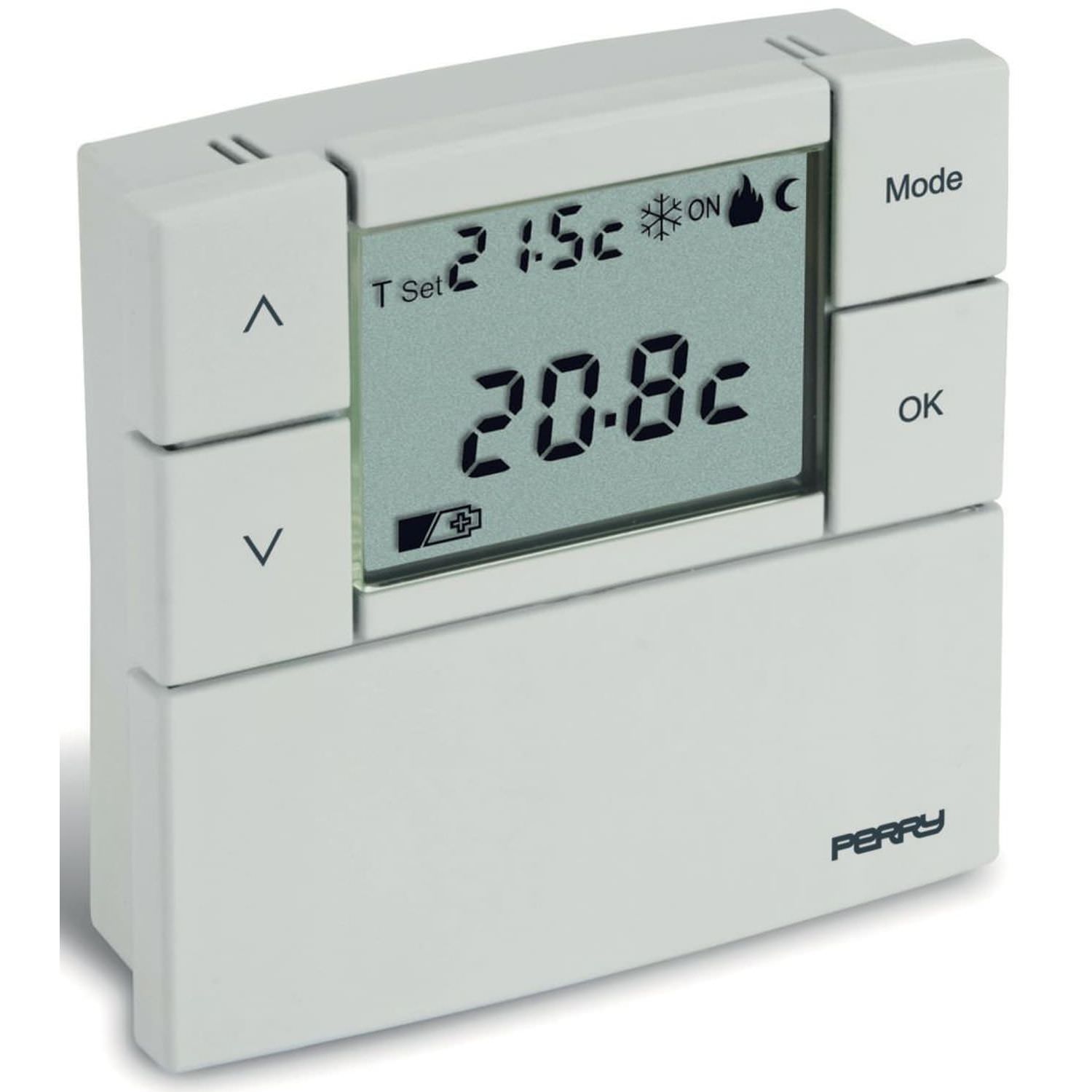

Digital Wall Thermostat Perry 1tp Te531b Series Zefiro 230v 80 x 80 White Colour Lcd Display 2 1/3 Temperature Levels 2 _ Antifreeze Adjustable Temperature For Set Of 0.1°c Est/inv Control Lock Temperature Set Indication Relay Status
DIGITAL THERMOSTAT 80x80 WALL 230V
Price MPCshop
Eur. 64,66
Available
138 Pcs Estimated Delivery in 6 working days
All prices are VAT included
Bullet points Perry Perry-1TPTE531B
Perry 1TP TE531B digital wall thermostat ZEFIRO 230V series Summer winter thermostat with Lcd 2\ Perry thermostat with 24 months autonomy Relay status indication Digital thermostat Temperature set lock Current thermostat power supply 230V AC 50-60Hz
Perry Perry 1tpte531b White Current Wall Thermostat
Customers Reviews Perry Perry-1TPTE531B
Lucio Data: 23 October 2018 SIMPLE AND EASY TO INSTALL, MEETS THE REQUIREMENTS OF BASIC OR ADVANCED PROGRAMMING, OR EVEN MANUAL. VERY SMALL AND DIFFICULT TO READ CHARACTERS
Valerio Data: 3 January 2017 I already had this great product a few years back. I was looking for it for an extension and since it was out of production I had a hard time finding it. Too bad I couldn't find it to be cashed.
Digital wall thermostat Perry 1TPTE531B series ZEFIRO 230V 80 x 80 white colour LCD display 2" 1/3 temperature levels 2 antifreeze Adjustable temperature for set of 0.1°C EAST/INV control Lock set temperatures Relay status indication
FORCE POINTS - Power supply 230V AC 50-60Hz - Lcd 2 1/3 display - Relay status indication - SUMMER-WINTER control

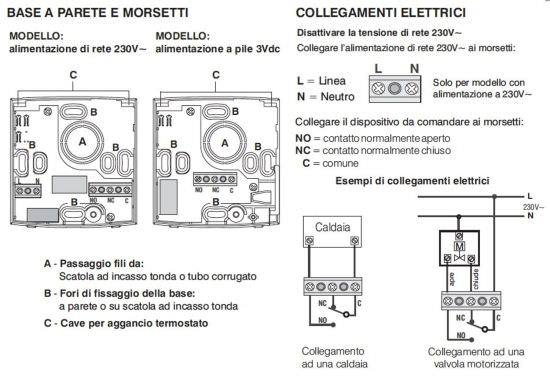

FUNCTION CHARACTERISTICS Power supply voltage 230V AC 50-60Hz Type of action, disconnection and device: 1/B/ Electronic Type of output: relay with potential-free NO / COM / NC exchange contact max 5 (3) A / 250V Software Class A Rated impulse voltage 4 kV Mains supply connection:2 conductors User connection (load): 2 or 3 conductors Cable section at terminals: 1.5 mmq ÷ 2.5 mmq Settable temperature levels: COMFORT / REDUCTION (saving) / ANTI-FREEZE (OFF) Range of ambient temperature display: 0 °C ÷ 37.7 °C / 32 °F ÷ 99.9 °F Resolution of ambient temperature: 0.1°C / 0.1°F COMFORT and REDUCTION: 5 °C ÷ 37.7 °C / 41.0 °F ÷ 99.9 °F (limitable) Set temperature resolution: 0.1 °C / 0.1 °F Antifreeze temperature: 4 °C ÷ 12 °C / 39.2 °F ÷ 53.6 °F (adjustable/exclusive) Temperature reading tolerance: ± 0.5 °C / ± 0.9 °F Thermal gradient: 1°K / 15 min Protection class: IP30 Insulating class: II Pollution degree: normal Reference standards for CE markings: LVD - EMC EN60730-1 EN60730-2-9
.
Current thermostat for wall mounting with Perry display 1TPT Perry 1TPTE531B
Digital Wall Thermostat Perry 1tp Te531b Series Zefiro 230v 80 x 80 White Colour Lcd Display 2 1/3 Temperature Levels 2 _ Antifreeze Adjustable Temperature For Set Of 0.1°c Est/inv Control Lock Temperature Set Indication Relay Status
DIGITAL THERMOSTAT 80x80 WALL 230V
Price MPCshop
Eur. 64,66
Available
138 Pcs Estimated Delivery in 6 working days
All prices are VAT included
Bullet points Perry Perry-1TPTE531B
Perry 1TP TE531B digital wall thermostat ZEFIRO 230V series Summer winter thermostat with Lcd 2\ Perry thermostat with 24 months autonomy Relay status indication Digital thermostat Temperature set lock Current thermostat power supply 230V AC 50-60Hz
Data: 23 ottobre 2018 SEMPLICE E DI FACILE INSTALLAZIONE, RISPONDE AI REQUISITI DI UNA PROGRAMMAZIONE DI BASE O AVANZATA, OPPURE ANCHE MANUALE. CARATTERI MOLTO PICCOLI E DI DIFFICILE LETTURA
Data: 3 gennaio 2017 Avevo già questo ottimo prodotto da alcuni anni. Lo stavo cercando per un ampliamento ed essendo fuori produzione ho fatto fatica a trovarlo. peccato non averlo trovato da incasso.
Data: 14 gennaio 2020 Funziona bene è molto semplice da usare una volta installato, lo consiglio a chi cerca un termostato giornaliero con poche variabili da inserire
Termostato da parete digitale Perry 1TPTE531B serie ZEFIRO 230V 80 x 80 colore bianco Display LCD 2" 1/3 livelli temperatura 2 + antigelo Temperatura regolabile per set di 0.1°C Comando EST/INV Blocco set temperature Indicazione stato relé
PUNTI DI FORZA • Alimentazione 230V c.a. 50-60Hz • Display Lcd 2” 1/3 • Indicazione stato relé • Comando ESTATE-INVERNO
CARATTERISTICHE Tensione di alimentazione 230V c.a. 50-60Hz Tipo di azione, disconnessione ed apparecchio: 1/B/ Elettronico Tipo di uscita: relè con contatto in scambio NO / COM / NC libero da potenziale max 5 (3) A / 250V Software Classe A Tensione impulsiva nominale 4 kV Collegamento alimentazione di rete:2 conduttori Collegamento utenza (carico): 2 o 3 conduttori Sezione cavi ai morsetti: 1,5 mmq ÷ 2,5 mmq Livelli di Temperatura impostabili: COMFORT / RIDUZIONE (risparmio) / ANTIGELO (OFF) Campo di visualizzazione temperatura ambiente: 0 °C ÷ +37,7 °C / +32 °F ÷ +99,9 °F Risoluzione temperatura ambiente: 0,1°C / 0,1°F COMFORT e RIDUZIONE: +5 °C ÷ +37,7 °C / +41.0 °F ÷ +99,9 °F (limitabile) Risoluzione temperatura di set: 0,1 °C / 0,1 °F Temperatura antigelo: +4 °C ÷ + 12 °C / 39.2 °F ÷ 53.6 °F (regolabile/escludibile) Tolleranza sulla lettura di temperatura: ± 0,5 °C / ± 0,9 °F Gradiente termico: 1°K / 15 min Grado di protezione: IP30 Classe isolamento: II Grado di inquinamento: normale Normative di riferimento per marcature CE: LVD - EMC EN60730-1 EN60730-2-9
Current thermostat for wall mounting with Perry display 1TPT Perry 1TPTE531B
Details Perry Perry-1TPTE531B
Power supply
230V c.a. 50-60Hz
Type Installation
Wall
Display Type
Lcd 2” 1/3
Temperature levels
2 + antifreeze
EAST / INV command
Yes
Setting range
5 - 37,7°C
Exit
5(3)A/250Vc.a.
How it works
ON/OFF with adjustable differential from 0.2 - 1.2°C or modulating with control period from 7 - 20 min
