The best electro-supply items, for both domestic and industrial use. Made in Italy, excellent materials, items always available and delivered within 48 hours of ordering. Lowest prices online!
Cube Infrared Wall Movement Detector Anthracite Colour Ip54 Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10m Perry 1spsp003a

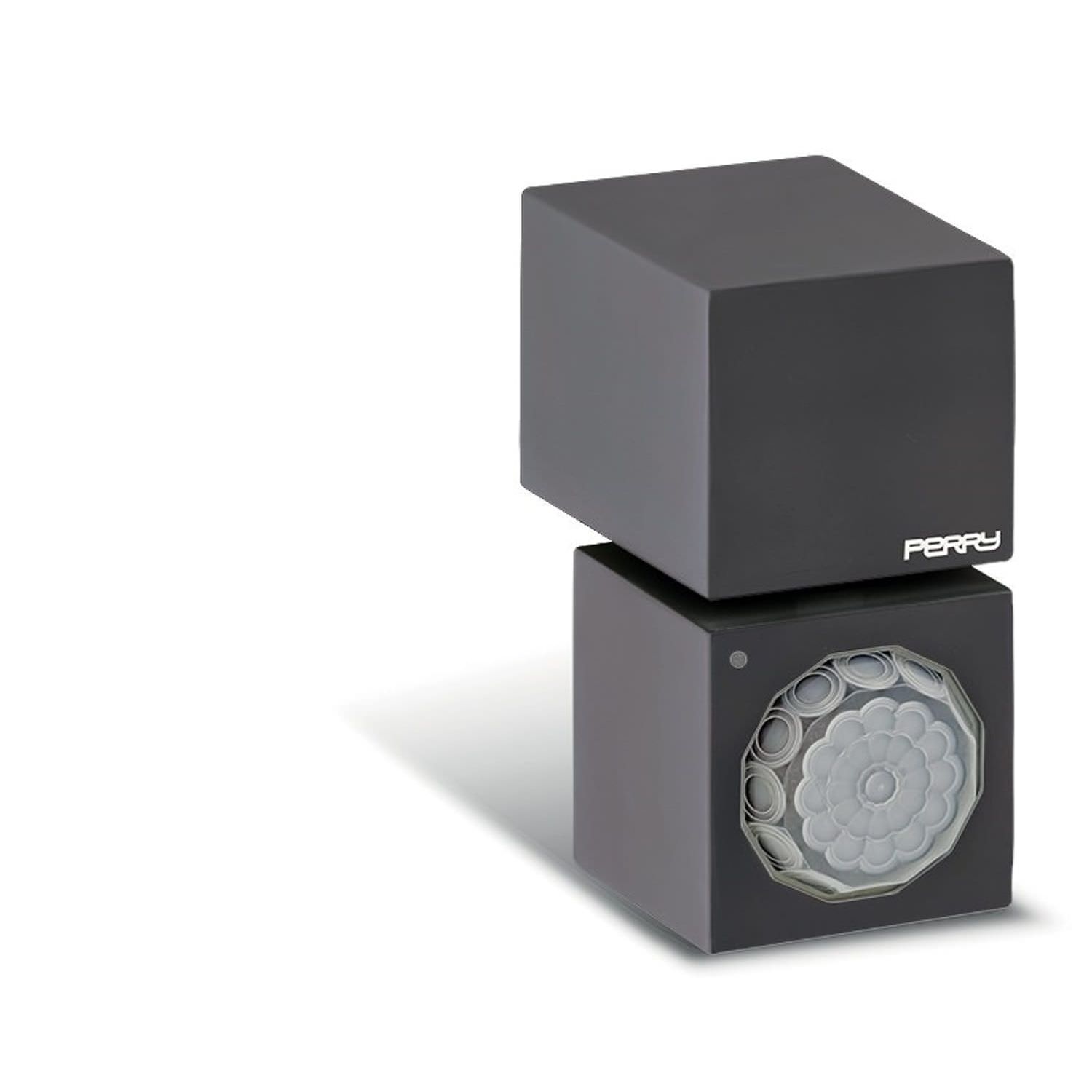

CUBE infrared wall movement detector anthracite color model 1SPSP003A Perry Sensing angle: 140°. Sensitivity adjustable from 0.4 to 10 m Possibility of manual exclusion to keep the light on 4 hours by disabling the action of the sensor Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving persons. Minimalist and refined design, small size and maximum performance for a product suitable for any type of environment
Cube Perry 1spsp003a Infrared Wall Movement Detector Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees
Customers Reviews Perry Perry-1SPSP003A
Infrared motion detector CUBE anthracite colour IP54 Sensing distance max 10m Sensing distance min. 40 cm Power supply 230V 50Hz Sensing angle 140 degrees Sensitivity adjustable from 0,4 to 10 m Perry 1SPSP003A
Infrared wall movement detector CUBE white - IP54 Minimalist and sophisticated design, small size and top performance for a product suitable for any type of environment.
Motion detectors and presence sensors are tools that increase the energy efficiency of the electrical systems in which they are installed. These devices, in fact, adapt the consumption of electricity to the real needs of lighting. The adjustable twilight threshold allows you to select when natural light is no longer sufficient for the user and therefore artificial light must be switched on. The switch-off delay time adjustment allows you to minimize waste, giving you the ability to set how long the light should stay on in the absence of people in the detection angle. This means switching on the light only when the sunlight is not enough and only for as long as you are present in the room.
Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving people. The motion detector activates the connected loads (lamp ignition, fans) when it detects movement in its coverage area. Deactivation takes place with a user-adjustable time delay. An adjustable twilight sensor inhibits the switching on of the lighting according to the ambient brightness. The detectors are used to switch on the lights of: private and public corridors, garages, driveways and entrances of homes, porches, stairways, corridors, bathrooms, etc.
Minimalist and sophisticated design, small size and performance at the highest levels for a product suitable for any type of environment.

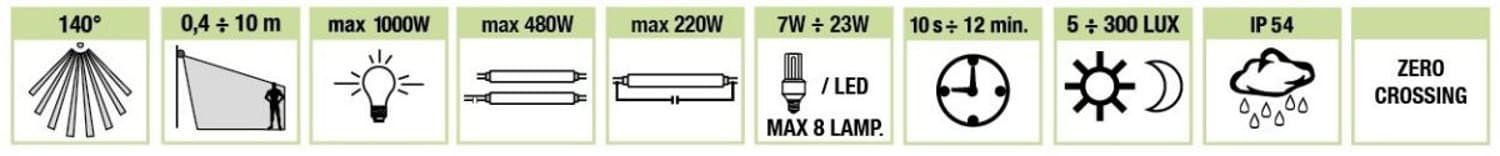

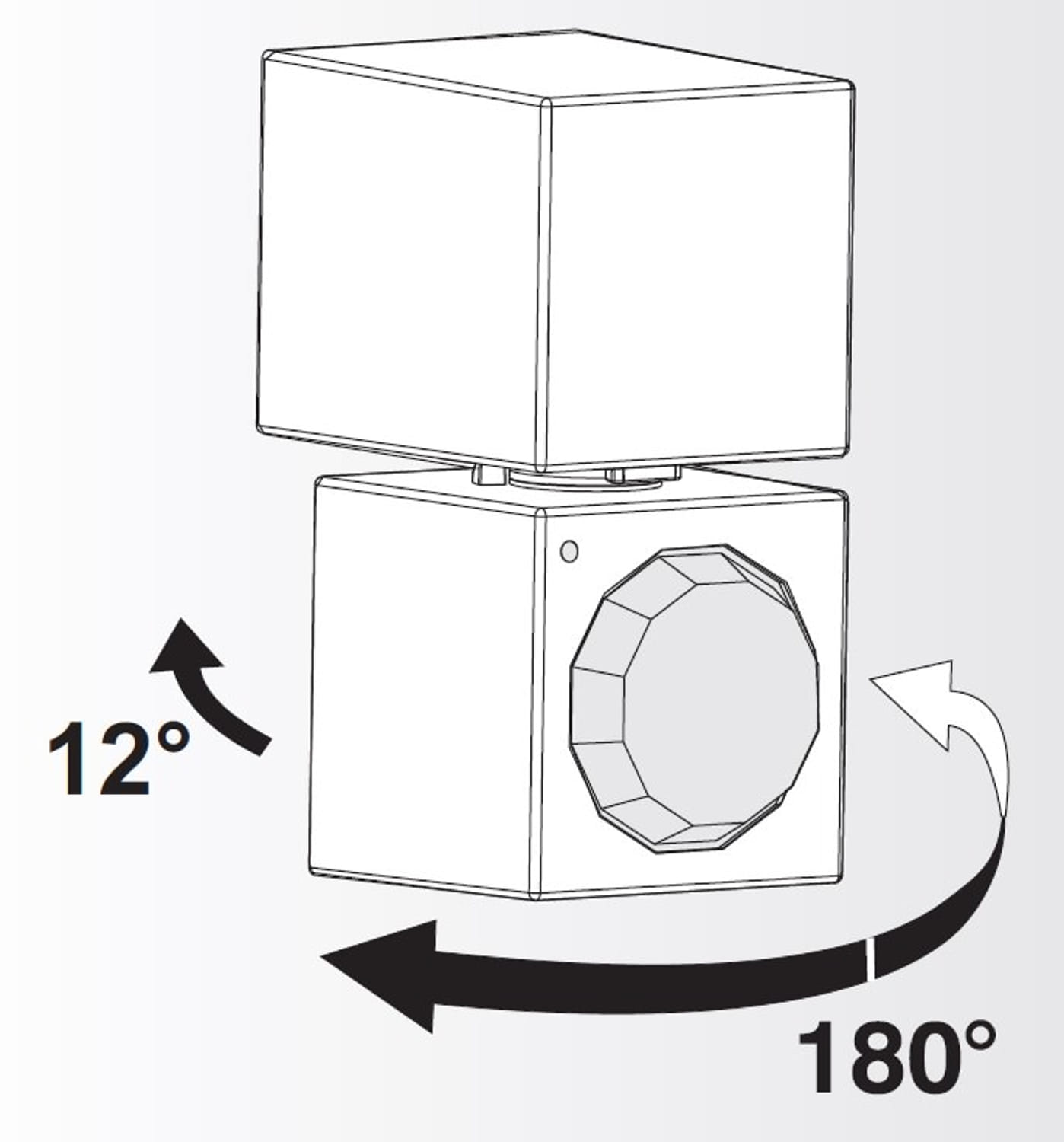

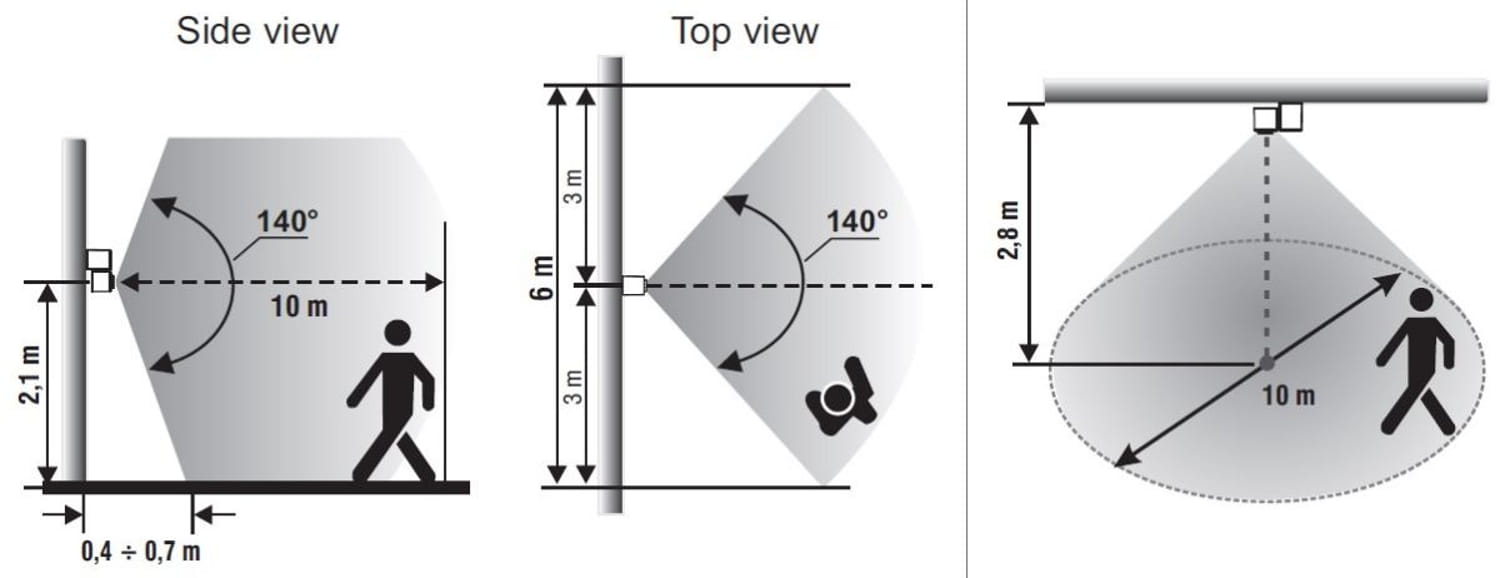

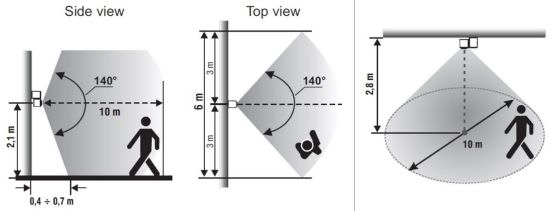

TECHNICAL FEATURES Wall installation Power supply 230V 50Hz Relay capacity: 5A Maximum lighting load: Incandescent lamps 1000W Fluorescent lamps 480W - CFL/LED (230V) 8 Sensing angle 140° Sensing head rotation angle: horizontal 180°, vertical 12° Sensing distance max 10 m Minimum sensing distance 40 cm Control of twilight threshold 5 - 300 Lux Control of switch-off delay time 10 sec - 12 min Isolation class II Intelligent relay control "ZERO CROSSING" Dimensions (WxDxH) 50 x 64 x 102 mm
.
Perry infrared wall motion detector Perry 1SPSP003A
Cube Infrared Wall Movement Detector Anthracite Colour Ip54 Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10m Perry 1spsp003a
CUBE infrared wall movement detector anthracite color model 1SPSP003A Perry Sensing angle: 140°. Sensitivity adjustable from 0.4 to 10 m Possibility of manual exclusion to keep the light on 4 hours by disabling the action of the sensor Motion detectors are electronic switches controlled by a passive infrared sensor sensitive to heat radiation emitted by moving persons. Minimalist and refined design, small size and maximum performance for a product suitable for any type of environment
Rilevatore di movimento da parete a raggi infrarossi CUBE colore antracite IP54 Distanza di rilevamento max 10m Distanza rilevamento minima 40 cm Alimentazione 230V 50Hz Angolo di rilevamento 140 gradi Sensibilità regolabile dai 0,4 ai 10 m Perry 1SPSP003A
Rilevatore di movimento da parete a raggi infrarossi CUBE colore bianco - IP54 Design minimalista e ricercato, dimensioni ridotte e prestazioni ai massimi livelli per un prodotto adatto ad ogni tipo di ambiente.
I rilevatori di movimento e i sensori di presenza sono strumenti che aumentano l’efficienza energetica degli impianti elettrici in cui vengono installati. Questi dispositivi, infatti, adattano il consumo di energia elettrica alle reali necessità d’illuminazione. La soglia crepuscolare impostabile permette di selezionare quando la luce naturale non è più sufficiente per l’utente e quindi deve essere accesa la luce artificiale. La regolazione del ritardo allo spegnimento consente di limitare al massimo gli sprechi, dando la possibilità di impostare per quanto tempo la luce deve rimanere accesa in assenza di persone nell’angolo di rilevamento. Ciò significa accendere la luce solo quando la luce del sole non è sufficiente e solo per il tempo in cui si è presenti nell’ambiente.
I rilevatori di movimento sono interruttori elettronici comandati da un sensore a raggi infrarossi passivi sensibile alle radiazioni di calore emesse dalle persone in movimento. Il rilevatore di movimento attiva le utenze collegate (accensione lampada, ventilatori) quando rileva un movimento nella sua area di copertura. La disattivazione avviene con un ritardo di tempo regolabile dall’utente. Un sensore crepuscolare regolabile inibisce l’accensione dell’illuminazione in funzione della luminosità ambientale. I rilevatori trovano applicazione per l’accensione delle luci di: corridoi privati e pubblici, autorimesse, viali di accesso e in ingressi delle abitazioni, porticati, scalinate, corridoi, bagni ecc.
Design minimalista e ricercato, dimensioni ridotte e prestazioni ai massimi livelli per un prodotto adatto ad ogni tipo di ambiente.
CARATTERISTICHE TECNICHE Installazione a parete Alimentazione 230V 50Hz Portata relè: 5A Carico massimo di illuminazione: Lampade incandescenza 1000W Lampade fluorescenti 480W - CFL/LED (230V) 8 Angolo di rilevamento 140° Angolo di rotazione della testa di rilevazione: orizzontale 180°, verticale 12° Distanza di rilevamento max 10 m Distanza rilevamento minima 40 cm Regolazione della soglia crepuscolare 5 – 300 Lux Regolazione del ritardo alla spegnimento 10 sec – 12 min Classe di isolamento II Pilotaggio intelligente del relè "ZERO CROSSING" Dimensioni (LxPxH) 50 x 64 x 102 mm
Perry infrared wall motion detector Perry 1SPSP003A
Wall Movement Detector Zero Series Model 1spsp044b Perry Protection Class Ip44 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Warm-up Time At First Power On Or After Blackout Approx. 40\"
Wall Mounted Motion Detector Zero Series Model 1spsp054b Perry Protection Class Ip54 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Operating Temperature From -20c To _40c Motion Detector With Broken Beams
Cube Infrared Wall Movement Detector White Ip54 Sensing Distance Max 10m Sensing Distance Min. 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10 m Perry 1spsp003b
Infrared Wall Movement Detector Ip44 Wall Installation Power Supply 230v 50hz Sensing Distance Max 12m Twilight Threshold Adjustment 0-1000 Lux Sensing Angle 180° Insulation Class Ii Perry 1spsp010
Wall Movement Detector Zero Series Model 1spsp044b Perry Protection Class Ip44 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Warm-up Time At First Power On Or After Blackout Approx. 40\"
Wall Mounted Motion Detector Zero Series Model 1spsp054b Perry Protection Class Ip54 Detection Angle Up To 220° Brightness Adjustment From 5 To 1000 Lux Operating Temperature From -20c To _40c Motion Detector With Broken Beams
Cube Infrared Wall Movement Detector White Ip54 Sensing Distance Max 10m Sensing Distance Min. 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10 m Perry 1spsp003b
Infrared Wall Movement Detector Ip44 Wall Installation Power Supply 230v 50hz Sensing Distance Max 12m Twilight Threshold Adjustment 0-1000 Lux Sensing Angle 180° Insulation Class Ii Perry 1spsp010
Perry-1SPSP003APerry Infrared Motion Detector Cube Infrared Wall Movement Detector Anthracite Colour Ip54 Sensing Distance Max 10m Sensing Distance Min 40 Cm Power Supply 230v 50hz Sensing Angle 140 Degrees Sensitivity Adjustable From 0.4 To 10m Perry 1spsp003a black
