The best electro-supply items, for both domestic and industrial use. Made in Italy, excellent materials, items always available and delivered within 48 hours of ordering. Lowest prices online!
Digital Time Switch With Perry 1io Display 0012d15 Knights 72x72 Wall Mounting Can Be Mounted On The Back Panel With Optional Accessory Sg001 Daily Program 1 Circuit 1 Contact In Free Diversion On/off 15 Minutes
DAILY TIME SWITCH
Price List
Eur. 73,27
Price MPCshop
Eur. 71,33
Available
157 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1IO0012D15

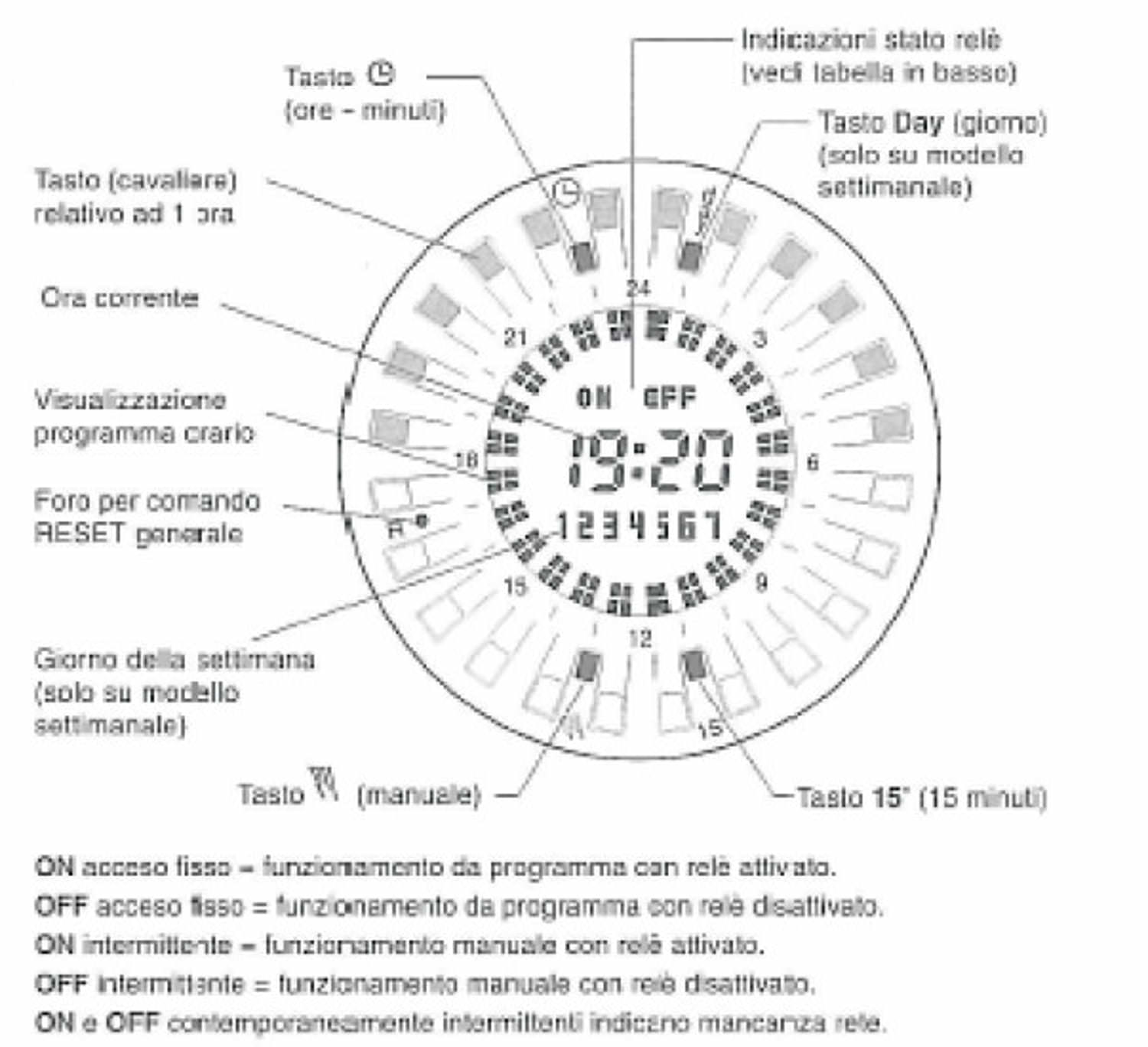

Circular LCD display 96 programs 15 days power reserve Supply voltage 230V AC 50 - 60Hz Type of civil / tertiary / industrial use
Perry1io0012d15 Perry1 Lcd Digital Daytime Accessory Knights Switch Wall Mount Backmountable With Optional Accessory Sg001
Customers Reviews Perry Perry-1IO0012D15

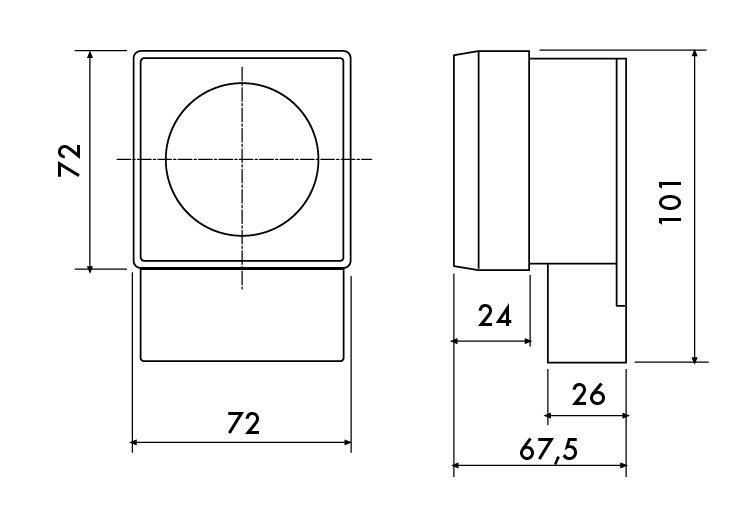

Digital time switch with Perry 1IO 0012D15 knurled display 72x72 Wall mounting Mountable on the back panel with optional accessory SG001 Daily program 1 circuit 1 contact in free diversion ON/OFF 15 minutes
CARACTERISTICS Power supply voltage 230V c.a. 50 - 60Hz Contact ratings 16(2) A / 250V AC Max. program number (ON-OFF) 96 (daily) Minimum insertion time ON - OFF 15 minutes Visualizations on circular LCD display Max. switchable power 3500 VA (per contact) Power: incandescent LP 2300 W Power: non-compensated fluorescent LP 1000 W Power: compact fluorescent LP tubes. in parallel 500W (total capacity 70 microF) Power: LP compact fluorescent 600W max cross-section of cables at terminals 2.5 mmq Protection class (IP) IP40 (wall - rear panel) Output type screw terminals captive Isolation class II Relay ON/OFF ON/OFF / OFF signalling on LCD display Charge reserve max 15 days approx Rechargeable battery reserve type NiMH Timerance - tolerance 1 sec/day Operating temperature limits 0°C 50°C Storage temperature - 1 sec/day Operating temperature limits 0°C 50°C Storage temperature - 1 sec/day Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Operating temperature Other temperature Other temperature Other temperature Other temperature Other temperature Ordering temperature Other temperature Other temperature Order temperature °C>Ordering temperature °C10°C 50°C Type of wall installation / back-of-panel / flush-mounted Thermoplastic housing - grey RAL 7035 Tertiary / industrial use Controls on board programming keys - reset key manual function key ON / OFF Precision setting of digital clock for hours / minutes Dimensions (WxDxH) 72 x 67.5 x 101 mm
Digital daily time switch with LCD for horsemen Perry 1IO0012D15
Digital Time Switch With Perry 1io Display 0012d15 Knights 72x72 Wall Mounting Can Be Mounted On The Back Panel With Optional Accessory Sg001 Daily Program 1 Circuit 1 Contact In Free Diversion On/off 15 Minutes
DAILY TIME SWITCH
Price List
Eur. 73,27
Price MPCshop
Eur. 71,33
Available
157 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1IO0012D15
Circular LCD display 96 programs 15 days power reserve Supply voltage 230V AC 50 - 60Hz Type of civil / tertiary / industrial use
Interruttore orario digitale con display Perry 1IO 0012D15 a cavalieri 72x72 Montaggio a parete Montabile a retroquadro con accessorio opzionale SG001 Programma giornaliero 1 circuito 1 contatto in deviazione libero ON/OFF 15 minuti
CARATTERISTICHE Tensione di alimentazione 230V c.a. 50 - 60Hz Dati nominali contatti 16(2) A / 250V c.a. Numero programmi max (ON-OFF) 96 (giornaliero) Tempo di inserzione minimo ON – OFF 15 minuti Visualizzazioni su display LCD circolare Potenza commutabile max 3500 VA (per singolo contatto) Potenza: LP incandescenza 2300 W Potenza: LP tubi fluorescenti non compensato 1000 W Potenza: LP tubi fluorescenti comp. in parallelo 500W (capacità tot 70 microF) Potenza: LP fluorescenti compatte 600W Sezione max dei cavi ai morsetti 2.5 mmq Grado di protezione (IP) IP40 (a parete - a retroquadro) Tipo di uscita morsetti a vite imperdibile Classe di isolamento II Segnalazione relè ON / OFF ON / OFF su display LCD Riserva di carica max 15 giorni circa Tipo di riserva batteria ricaricabile NiMH Tolleranza sul tempo + - 1 sec/giorno Limiti di temperatura di funzionamento 0°C +50°C Temperatura di stoccaggio -10°C +50°C Tipo installazione a parete / a retroquadro / ad incasso Involucro termoplastico - grigio RAL 7035 Tipo uso civile / terziario / industriale Comandi a bordo tasti programmazione - tasto reset tasto funzione manuale ON / OFF Precisione impostazione orologio digitale per ore / minuti Dimensioni (LxPxH) 72 x 67.5 x 101 mm
Digital daily time switch with LCD for horsemen Perry 1IO0012D15
