The best electro-supply items, for both domestic and industrial use. Made in Italy, excellent materials, items always available and delivered within 48 hours of ordering. Lowest prices online!

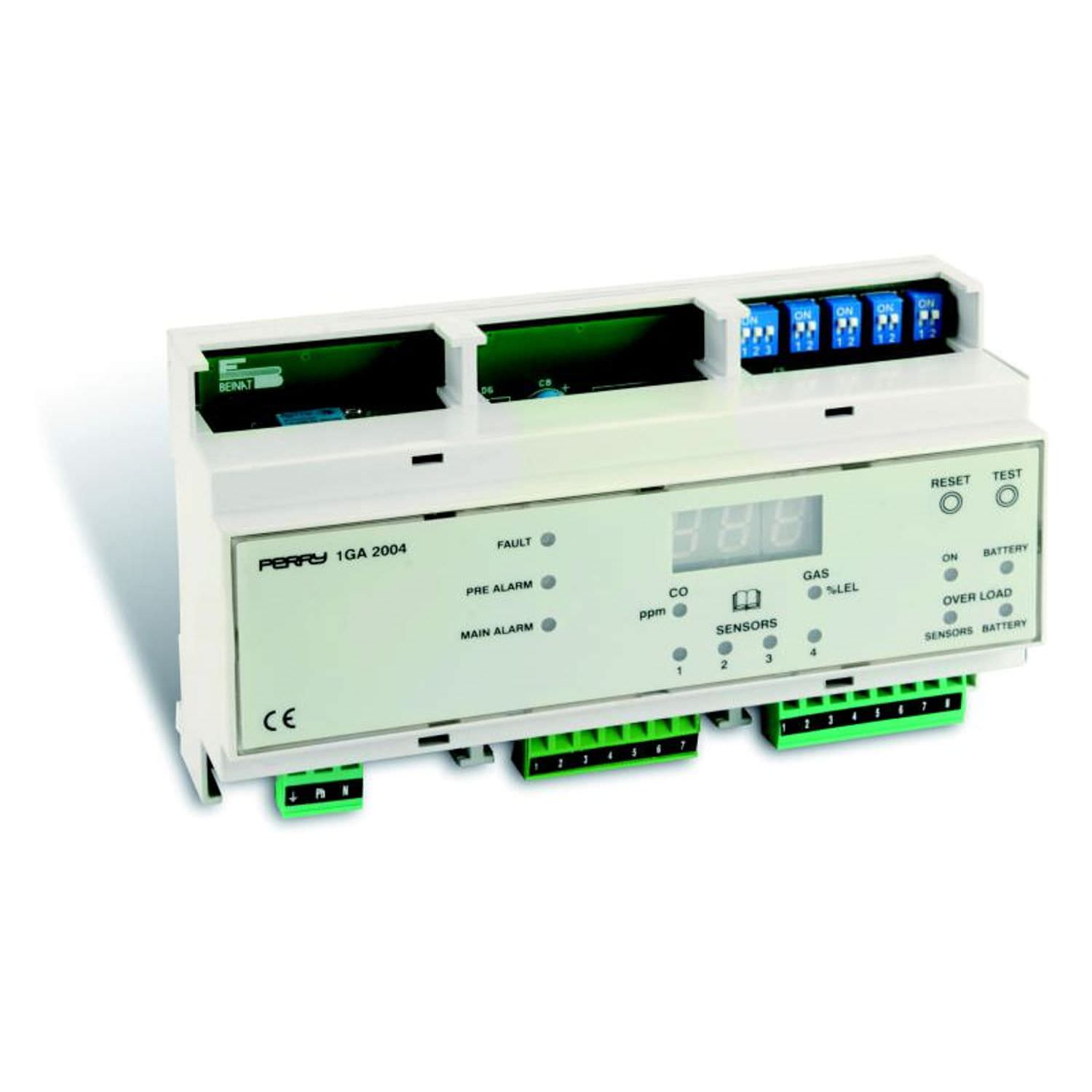

Perry Perry Gas Detection Unit 1ga2004 Perry-1GA2004
Control unit 4 zones for explosive and toxic gases and fire detectors Perry 1GA 2004 9 DIN Microprocessor-controlled control unit for gas and fire-fighting fungus. Accepts signals from gas and smoke probes and temperature for fire-fighting systems. Self-d
Microprocessor control unit for controlling gas leaks and fire fighting Accepts signals from probes for toxic and explosive gases and from smoke and temperature probes for fire fighting systems Self-diagnosis systems check probe status and connection Pre-alarm 13 el LIE explosive gases and 200ppm for CO -alarm 20 el LIE explosive gases and 300ppm for CO - 4 connectable gas probes of type: catalytic, electrochemical cell, pellistor, semiconductor 4 connectable gas probes: catalytic, electrochemical cell, pellistor, semiconductor 20 connectable fire probes (5 per zone) of type: optical smoke, fixed temperature, increase temperature Input signal Analog GAS 4mA÷20mA Fire input signal Max 5V Max probe distance 100m RESET and TEST command Input for remote fire button Signalling buzzer LED operating status indication LED gas type indication LED pre alarm and main alarm indication
Control Unit For Detection Of 4 Zones Explosive And Toxic Gases Perry1ga2004 Central Microprocessor For Control Of Gas And Firefighting Fungus Accepts Signals From Gas And Smoke And Temperature Probes For Firefighting Systems
Customers Reviews Perry Perry-1GA2004
Central unit for 4 zones for explosive and toxic gases and fire detectors Perry 1GA 2004 9 DIN Microprocessor controlled gas and fire alarm system. Accepts signals from gas and smoke probes and temperature for fire-fighting systems. Self-diagnosis
Microprocessor-controlled control unit for gas leak and fire control. Accepts signals from toxic and explosive gas probes and from smoke and temperature probes for fire-fighting systems. Accurate self-diagnosis systems perform continuous monitoring of the status of the probe and its connection.
STRONG POINTS - Pre-alarm 13 el LIE explosive gases and 200ppm for CO - Alarm 20 el LIE explosive gases and 300ppm for CO - 4 probes connectable gases of type: catalytic, electrochemical cell, pellistor, semiconductor

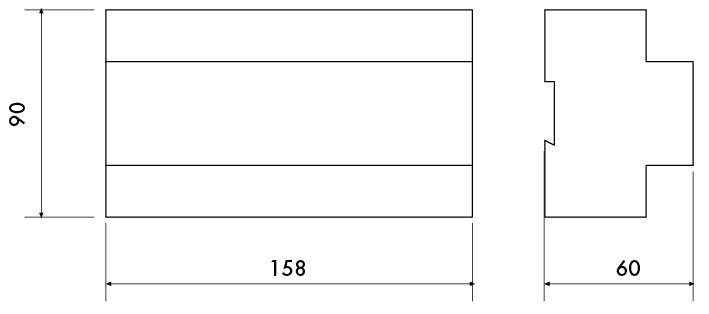

CARATTERISTICS Power supply 230V c.a. 50Hz ±10r>Secondary power supply via 12V DC battery ±10r>Outputs 3 1 potential-free contacts: Gas pre-alarm, gas alarm, fire alarm 10A 250 V AC resistive - 5A 30V DC resistive Avaria 5A 250 V AC resistive - 2A 30V DC resistive Pre-alarm 13 el LIE explosive gases and 200ppm for CO Alarm 20 el LIE explosive gases and 300ppm for CO 4 connectable gas probes of type: catalytic, electrochemical cell, pellistor, semiconductor 20 connectable fire probes (5 per zone) of type: optical smoke, fixed temperature, increase temperature Input signal GAS analog 4mA÷20mA Input signal fire Max 5V Distance max probe 100m Control RESET and TEST command Input for remote fire alarm button Buzzer signal LED indication operating status LED gas type indication LED pre alarm and main alarm indication Display gas concentration indication in sequence for each zone 2" continuous scanning on each probe IP20 Dimensions (WxDxH) 158 x 58 x 90 mm
Detection unit for 4 zones Explosive and toxic gases Perry Perry 1GA2004
Control unit 4 zones for explosive and toxic gases and fire detectors Perry 1GA 2004 9 DIN Microprocessor-controlled control unit for gas and fire-fighting fungus. Accepts signals from gas and smoke probes and temperature for fire-fighting systems. Self-d
Microprocessor control unit for controlling gas leaks and fire fighting Accepts signals from probes for toxic and explosive gases and from smoke and temperature probes for fire fighting systems Self-diagnosis systems check probe status and connection Pre-alarm 13 el LIE explosive gases and 200ppm for CO -alarm 20 el LIE explosive gases and 300ppm for CO - 4 connectable gas probes of type: catalytic, electrochemical cell, pellistor, semiconductor 4 connectable gas probes: catalytic, electrochemical cell, pellistor, semiconductor 20 connectable fire probes (5 per zone) of type: optical smoke, fixed temperature, increase temperature Input signal Analog GAS 4mA÷20mA Fire input signal Max 5V Max probe distance 100m RESET and TEST command Input for remote fire button Signalling buzzer LED operating status indication LED gas type indication LED pre alarm and main alarm indication
Centralina 4 zone per gas esplosivi e tossici e rilevatori antincendio Perry 1GA 2004 9 DIN Centrale a microprocessore per controllo funghe gas e antincendio. Accetta segnali da sonde per gas e di fumo e temperatura per impianti anticendio. Autodiagnosi
Centrale a microprocessore per controllo fughe di gas e antincendio. Accetta segnali da sonde per gas tossici ed esplosivi e da sonde di fumo e temperatura per impianti antincendio. Accurati sistemi di autodiagnosi eseguono un continuo controllo dello stato della sonda e del suo collegamento.
PUNTI DI FORZA • Preallarme 13% del LIE gas esplosivi e 200ppm per CO • Allarme 20% del LIE gas esplosivi e 300ppm per CO • 4 sonde gas collegabili di tipo: catalitico, cella elettrochimica, pellistore, semiconduttore
CARATTERISTICHE Alimentazione 230V c.a. 50Hz ±10% Alimentazione secondaria tramite batteria 12V c.c. ±10% Uscite 3+1 contatti liberi da potenziale: Preallarme gas, allarme gas, allarme incendio 10A 250 V c.a. resistivi - 5A 30V c.c. resistivi Avaria 5A 250 V c.a. resistivi - 2A 30V c.c. resistivi Preallarme 13% del LIE gas esplosivi e 200ppm per CO Allarme 20% del LIE gas esplosivi e 300ppm per CO 4 sonde gas collegabili di tipo: catalitico, cella elettrochimica, pellistore, semiconduttore 20 sonde incendio collegabili(5 per zona) di tipo: fumo ottico, temperatura fissa, temperatura ad incremento Segnale di ingresso GAS analogica 4mA÷20mA Segnale di ingresso antincendio Max 5V Distanza max sonda 100m Comando RESET e comando TEST Ingresso per pulsante remoto antincendio Buzzer di segnalazione LED indicazione stato funzionamento LED indicazione tipo di gas LED indicazione pre alarm e main alarm Display indicazione concentrazione gas in sequenza per ogni zona Scansione di 2” continua su ogni sonda IP20 Dimensioni (LxPxH) 158 x 58 x 90 mm
Detection unit for 4 zones Explosive and toxic gases Perry Perry 1GA2004
Control Unit 1 Zone For Explosive And Toxic Gases Perry 1ga 2001 6 Din Microprocessor Central To Remotely Control, By Means Of Probes, The Presence Of Gas With Self-diagnosis For Continuous Monitoring Of The Status Of The Probe And Its Connection
Control Unit 2 Zones For Explosive And Toxic Gases Perry 1ga 2002 6 Din Microprocessor Central To Remotely Control, By Means Of Probes, The Presence Of Gas With Self-diagnosis For Continuous Monitoring Of The Status Of The Probe And Its Connection
Control Unit 1 Zone For Explosive And Toxic Gases Perry 1ga 2001 6 Din Microprocessor Central To Remotely Control, By Means Of Probes, The Presence Of Gas With Self-diagnosis For Continuous Monitoring Of The Status Of The Probe And Its Connection
Control Unit 2 Zones For Explosive And Toxic Gases Perry 1ga 2002 6 Din Microprocessor Central To Remotely Control, By Means Of Probes, The Presence Of Gas With Self-diagnosis For Continuous Monitoring Of The Status Of The Probe And Its Connection
Perry-1GA2004Perry Perry Gas Detection Unit 1ga2004 Control unit 4 zones for explosive and toxic gases and fire detectors Perry 1GA 2004 9 DIN Microprocessor-controlled control unit for gas and fire-fighting fungus. Accepts signals from gas and smoke probes and temperature for fire-fighting systems. Self-d white
