Perry Perry Wallmounted Radio Receiver Perry-1TXRX01-P
Wall Mounted Radio Receiver 1 Zone Perry-1txrx01-p Ric. Rx 1 Zone Wall Mounting Receiving Frequency 868.35mhz Colour White Manual On/off Control Power Supply 230v Ac 50-60hz Output 1 Potential-free Deviation Contact 5(2)a/250v

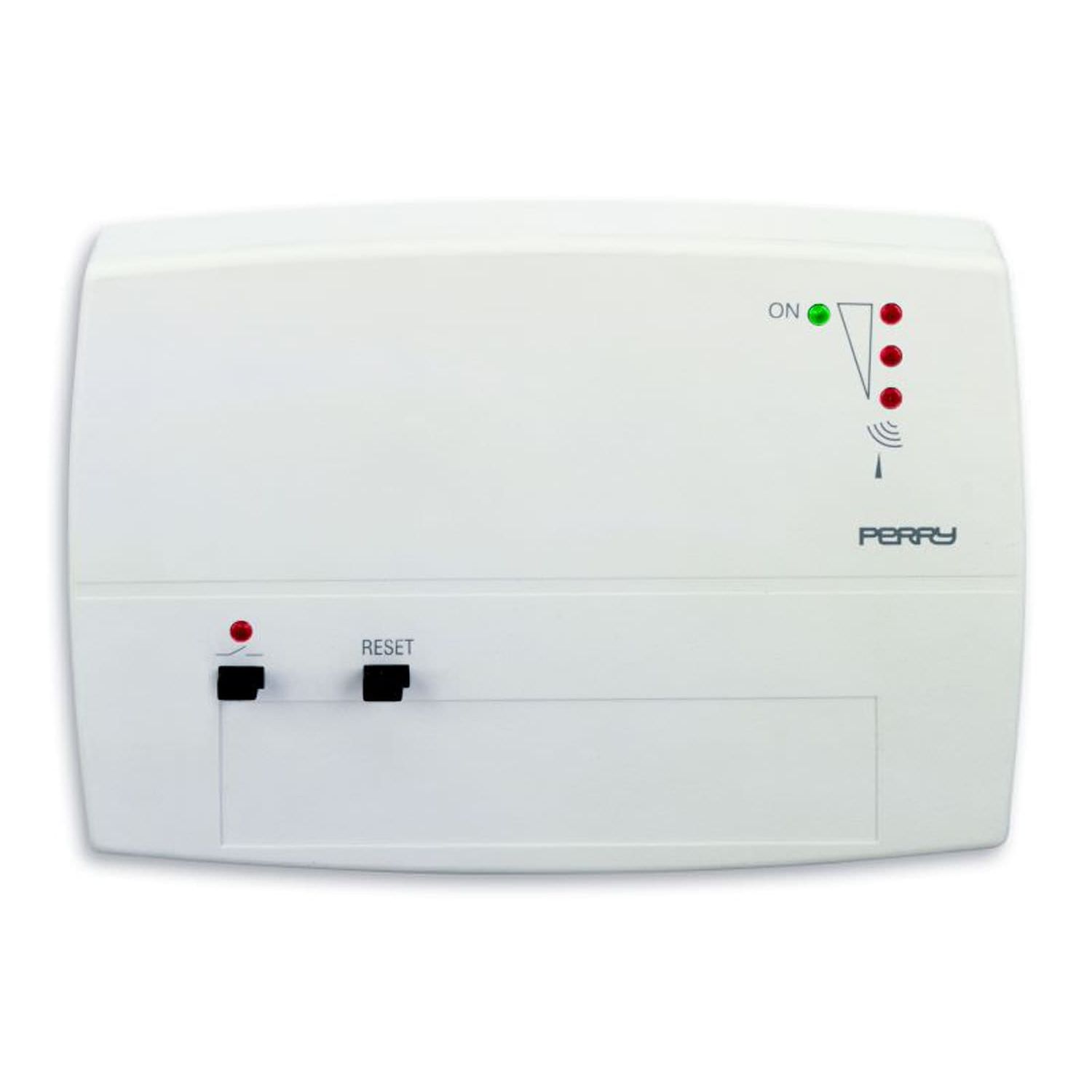

1-CHANNEL WALL-MOUNTED RADIO RECEIVER
Price List
Eur. 131,83
Price MPCshop
Eur. 128,34
Available
228 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1TXRX01-P
Wall mounted radio receiver Maximum signal range in the presence of walls 30 meters Radio wall receiver for wireless chronothermostat Wall mounted radio receiver for wireless thermostat
Radio Wall Receiver 1 Zone White Perry 1txrx01p Wall Installation
Customers Reviews Perry Perry-1TXRX01-P
Manuele Data: December 26, 2015 Great product, solid sturdy and well built, only time will give judgement on reliability! Installed under the boiler without any particular problems

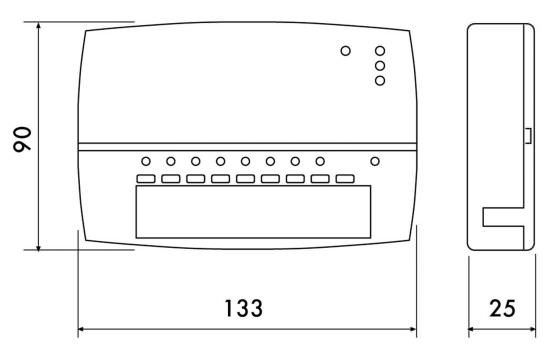

Wall-mounted radio receiver 1 zone Perry-1TXRX01 P Wall-mounted installation Reception frequency 868.35Mhz Color white Manual ON/OFF control Power supply 230V AC. 50-60Hz Output 1 contact in potential-free deflection 5(2)A/250V RF signal level indication Size (WxDxH) 133 x 25 x 9.
Wall-mounted radio receiver 1 zone, wall installation, reception frequency 868.35Mhz, color white, manual ON/OFF control, power supply 230V ac. 50-60Hz, output 1 contact in potential-free deflection 5(2)A/250V
POTENTIAL STRENGTHS - Wall-mounted radio receiver - Maximum signal range in the presence of walls 30 meters - Wall-mounted radio receiver for wireless mpcshop - Wall-mounted radio receiver for wireless thermostat - Self-learning transmitter matching, facilitated by light and sound indications - Possibility of cancellation of transmitter pairing to the zone even in case of transmission failure - Manual forcing of output status for system test (5 min, resettable) - RESET command for deletion of temporary data in memory and command deactivation - Permanent memory, editable, for transmitter pairing - Light signaling of failure status for absence of transmission and low battery - High reliability of communication due to dual data transmission - Light and/or sound indication, on 3 levels, of TEST signal for verification of signal presence and range (VMETER)
CHARACTERISTICS Power supply: 230 V~ 50÷60 Hz Device power consumption: 2.5 VA max Type of action, disconnection and device: 1 / B / Electronic Type of output: no. 1 relay with single-pole changeover contact, potential-free NC/NO/COM - 5(2) A / 250 V~ Wire size at terminals: min. 1 mm ÷ max. 2.5 mm 2 Receiving frequency band: 868-868.6 MHz Maximum signal range in free area: 120 meters Maximum signal range in the presence of walls: 30 meters (in accordance with chapters 1.1 and 1.4 ) Mode of signal reception: antenna inside the receiver Type of insulation: Class II Grade of protection: IP 30 / wall-mounted Pollution degree: normal Operating temperature limits: -20 °C to 70 °C Storage temperature limits: -25 °C to 85 °C
PERFORMANCE DATA Self-learning transmitter pairing, facilitated by light and sound indications. Possibility of cancellation of transmitter pairing to the zone even in case of transmission failure. Manual forcing of output status for system test (5 minutes, resettable). RESET control for deletion of temporary data in memory and command deactivation. Permanent memory, modifiable, for transmitter pairing. Lighted indication of failure status for no transmission and low battery. High reliability of communication due to dual data transmission. Light and/or sound indication, on 3 levels, of TEST signal for verification of signal presence and range (VMETER).
ABBINABILITY TO: - Perry wireless chronothermostat 1TXCRTX05 - PERRY wireless thermostat 1TXTETX04
Perry1TXRX01P 1-zone white wall-mounted radio receiver Perry 1TXRX01/P
Wall Mounted Radio Receiver 1 Zone Perry-1txrx01-p Ric. Rx 1 Zone Wall Mounting Receiving Frequency 868.35mhz Colour White Manual On/off Control Power Supply 230v Ac 50-60hz Output 1 Potential-free Deviation Contact 5(2)a/250v
1-CHANNEL WALL-MOUNTED RADIO RECEIVER
Price List
Eur. 131,83
Price MPCshop
Eur. 128,34
Available
228 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1TXRX01-P
Wall mounted radio receiver Maximum signal range in the presence of walls 30 meters Radio wall receiver for wireless chronothermostat Wall mounted radio receiver for wireless thermostat
Data: 26 dicembre 2015 Ottimo prodotto, solido robusto e ben costruito, solo il tempo però darà sentenza sulla' affidabilità! Installato sotto alla caldaia senza particolari problemi
Ricevitore radio da parete 1 zona Perry-1TXRX01 P Installazione a parete Frequenza di ricezione 868.35Mhz Colore bianco Comando ON/OFF manuale Alimentazione 230V c.a. 50-60Hz Uscita 1 contatto in deviazione libero da potenziale 5(2)A/250V Indicazione livello segnale RF Dimensione (LxPxH) 133 x 25 x 9.
Ricevitore radio da parete 1 zona, installazione a parete, frequenza di ricezione 868.35Mhz, colore bianco, comando ON/OFF manuale, alimentazione 230V c.a. 50-60Hz, uscita 1 contatto in deviazione libero da potenziale 5(2)A/250V
PUNTI DI FORZA • Ricevitore radio da parete • Portata massima del segnale in presenza di pareti 30 metri • Ricevitore radio da parete per mpcshop wireless • Ricevitore radio da parete per termostato wireless • Abbinamento dei trasmettitore in autoapprendimento, facilitato da indicazioni luminose e acustiche • Possibilità di cancellazione dell’abbinamento del trasmettitore alla zona anche in caso di avaria della trasmissione • Forzatura manuale dello stato dell’uscita per prova impianto (5 minuti, ripristinabili) • Comando “RESET “ per cancellazione dei dati temporanei in memoria e disattivazione comandi • Memoria permanente, modificabile, per l’abbinamento del trasmettitore • Segnalazione luminosa dello stato di avaria per assenza di trasmissioni e per batteria quasi scarica • Elevata affidabilità della comunicazione grazie alla doppia trasmissione dei dati • Indicazione luminosa e/o acustica, su 3 livelli, del segnale di TEST per verifica della presenza e portata del segnale (VMETER)
CARATTERISTICHE Alimentazione: 230 V~ 50÷60 Hz Assorbimento del dispositivo: 2,5 VA max Tipo di azione, disconnessione e apparecchio: 1 / B / Elettronico Tipo di uscita: n° 1 relè con contatto unipolare in scambio, libero da potenziale NC/NA/COM - 5(2) A / 250 V~ Sezione dei fili ai morsetti: min. 1 mm ÷ max. 2,5 mm 2 2 Banda di frequenza di ricezione: 868-868.6 MHz Portata massima del segnale in area libera: 120 metri Portata massima del segnale in presenza di pareti: 30 metri (conformemente ai capitoli 1.1 e 1.4 ) Modo di ricezione del segnale: antenna interna al ricevitore Tipo di isolamento: Classe II Grado di protezione: IP 30 / montaggio a parete Grado di inquinamento: normale Limiti della temperatura di funzionamento: -20 °C ÷ + 70 °C Limiti della temperatura di stoccaggio: -25 °C ÷ + 85 °C
DATI PRESTAZIONALI Abbinamento dei trasmettitore in autoapprendimento, facilitato da indicazioni luminose e acustiche. Possibilità di cancellazione dell’abbinamento del trasmettitore alla zona anche in caso di avaria della trasmissione. Forzatura manuale dello stato dell’uscita per prova impianto (5 minuti, ripristinabili). Comando “RESET “ per cancellazione dei dati temporanei in memoria e disattivazione comandi. Memoria permanente, modificabile, per l’abbinamento del trasmettitore. Segnalazione luminosa dello stato di avaria per assenza di trasmissioni e per batteria quasi scarica. Elevata affidabilità della comunicazione grazie alla doppia trasmissione dei dati. Indicazione luminosa e/o acustica, su 3 livelli, del segnale di TEST per verifica della presenza e portata del segnale (VMETER).
ABBINABILIE A: • Cronotermostato wireless Perry 1TXCRTX05 • Termostato wireless PERRY 1TXTETX04
Perry1TXRX01P 1-zone white wall-mounted radio receiver Perry 1TXRX01/P
Perry 1txcrtx05 Wireless Chronothermostat With Radio Frequency Output 868.35mhz Weekly 3 Preset Programs _ 1 Free 2 Temperature Levels _ Antifreeze Telephone Control Input Master Function Wall Mounted Chronothermostat White
Digital radio frequency thermostat Perry 1TX TETX04 3V with radio frequency output 868.35 MHz Temperature levels 1 direct and 1 indirect Range between 30 and 130 meters EST/INV control 2 alkaline batteries 1.5V AA Autonomy 36 months ON and LOW BAT indicat
Perry 1txcrtx05 Wireless Chronothermostat With Radio Frequency Output 868.35mhz Weekly 3 Preset Programs _ 1 Free 2 Temperature Levels _ Antifreeze Telephone Control Input Master Function Wall Mounted Chronothermostat White
Digital radio frequency thermostat Perry 1TX TETX04 3V with radio frequency output 868.35 MHz Temperature levels 1 direct and 1 indirect Range between 30 and 130 meters EST/INV control 2 alkaline batteries 1.5V AA Autonomy 36 months ON and LOW BAT indicat
Perry-1TXRX02-P Receiver 2 Zones With Pump Activation
Receiver 2 Zones - Wall With Pump Activation 30vac 50-60 Hz White Colour Dimensions 90x25x132 Mm Ip30 Carrier Reception Frequency 868,35 Mhz Manual On/off Control Signal Level Indicator Rf Output For Circulation Pump Control Activated
Perry-1TXRX0801-P Wall Mounted Radio Receiver 8 Zones
Wall Radio Receiver 8 Zones _ 1 Circulation Pump Output Power Supply Via Bus 16v Receiving Frequency 868.35mhz Manual On/off Control Signal Level Indication Rf Signal For Activated Circulation Pump Control White Colour
Perry-1TXRX02-P Receiver 2 Zones With Pump Activation
Receiver 2 Zones - Wall With Pump Activation 30vac 50-60 Hz White Colour Dimensions 90x25x132 Mm Ip30 Carrier Reception Frequency 868,35 Mhz Manual On/off Control Signal Level Indicator Rf Output For Circulation Pump Control Activated
Perry-1TXRX0801-P Wall Mounted Radio Receiver 8 Zones
Wall Radio Receiver 8 Zones _ 1 Circulation Pump Output Power Supply Via Bus 16v Receiving Frequency 868.35mhz Manual On/off Control Signal Level Indication Rf Signal For Activated Circulation Pump Control White Colour
Perry-1TXRX01-PPerry Perry Wallmounted Radio Receiver Wall Mounted Radio Receiver 1 Zone Perry-1txrx01-p Ric. Rx 1 Zone Wall Mounting Receiving Frequency 868.35mhz Colour White Manual On/off Control Power Supply 230v Ac 50-60hz Output 1 Potential-free Deviation Contact 5(2)a/250v white
